Technical Specifications
Silicon Labs C8051F989-GM technical specifications.
General
Package/Case
QFN
Core Architecture
8051
Data Bus Width
8b
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Max Frequency
7kHz
Max Operating Temperature
85°C
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
17
Number of Programmable I/O
17
Number of Timers/Counters
4
Operating Supply Voltage
2.4V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
0.5KB
RoHS Compliant
No
Series
C8051F9xx
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Silicon Labs C8051F989-GM Datasheet
Download the complete datasheet for Silicon Labs C8051F989-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

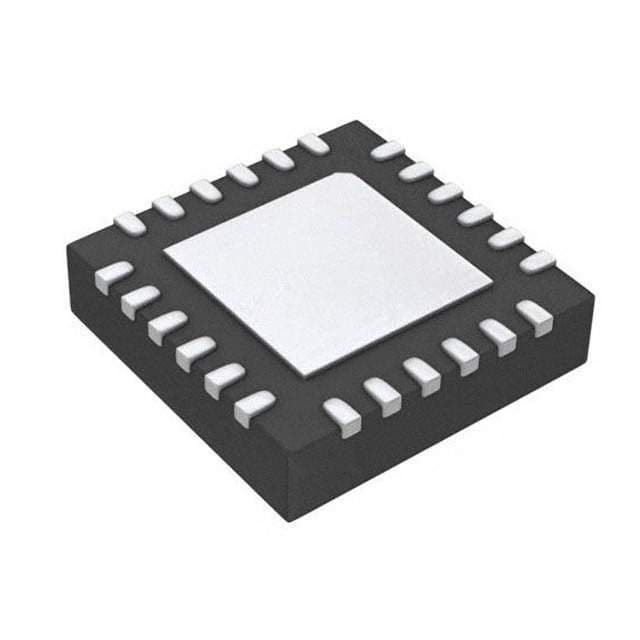

Product Images
