Digital output proximity and ambient light sensor with I2C interface. Features optical sensing method and a maximum sensing distance of 500mm. Operates from 1.71V to 3.6V supply voltage, with a typical operating supply voltage of 1.8V and low operating supply current of 1.4uA. Housed in a QFN package, this component is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs SI1143-A11-GMR technical specifications.
General
| Package/Case | QFN |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.71V |
| Operating Supply Current | 1.4uA |
| Operating Supply Voltage | 1.8V |
| Output Configuration | Digital |
| Output Type | I2C |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 500mm |
| Sensing Method | Optical |
Compliance
| RoHS | Compliant |
Datasheet
Silicon Labs SI1143-A11-GMR Datasheet
Download the complete datasheet for Silicon Labs SI1143-A11-GMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

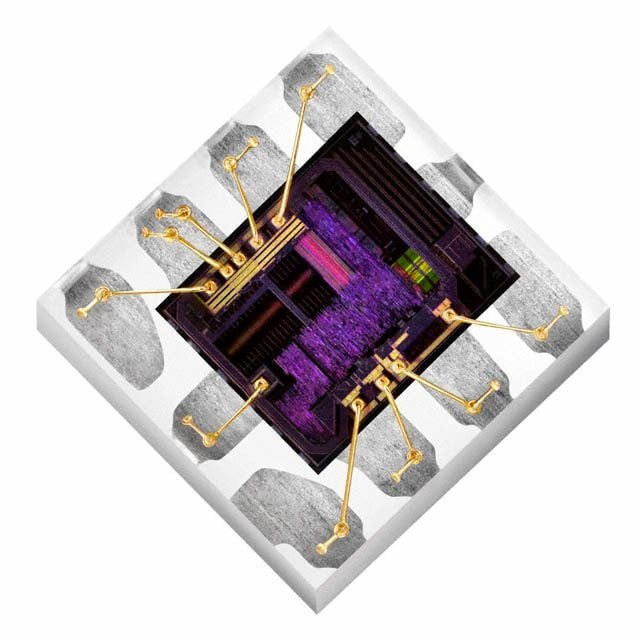

Product Images
