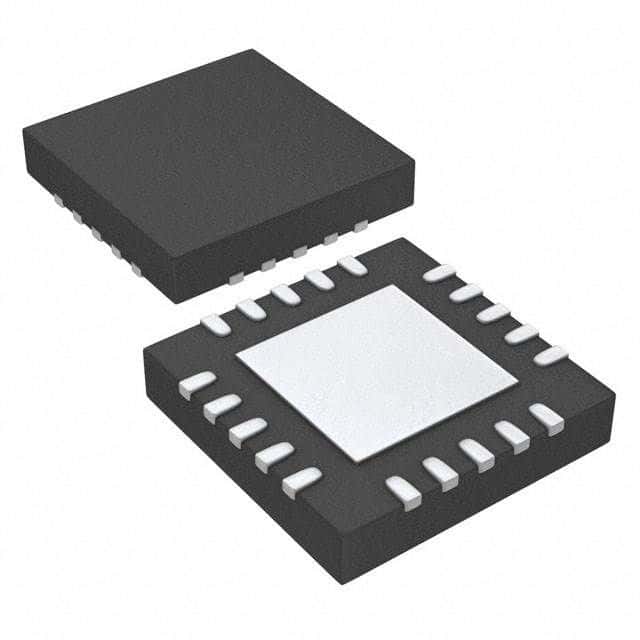

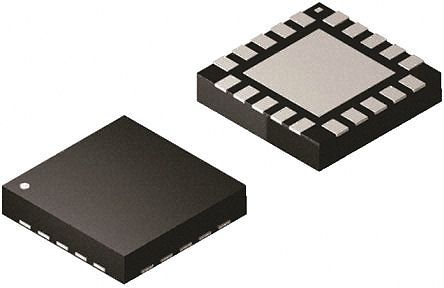

RF Transceiver IC supporting FSK, GFSK, GMSK, MSK, and OOK modulation. Features a 119MHz to 1.05GHz frequency range with a 1Mbps data rate and 20dBm output power. Operates at 3.3V with a 1.8V to 3.6V supply range, offering -126dBm sensitivity. Includes SPI interface and 4 GPIO pins, housed in a 4mm x 4mm x 0.85mm QFN package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI4464-B1B-FM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs SI4464-B1B-FM technical specifications.
| Package/Case | QFN |
| Current - Receiving | 13.7mA |
| Current - Transmitting | 85mA |
| Data Rate | 1Mbps |
| Frequency | 119MHz |
| Height | 0.85mm |
| Interface | SPI |
| Length | 4mm |
| Max Frequency | 1.05GHz |
| Min Frequency | 119MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 4 |
| Operating Supply Voltage | 3.3V |
| Output Power (dBm) | 20dBm |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensitivity | -126dBm |
| Width | 4mm |
| RoHS | Compliant |
