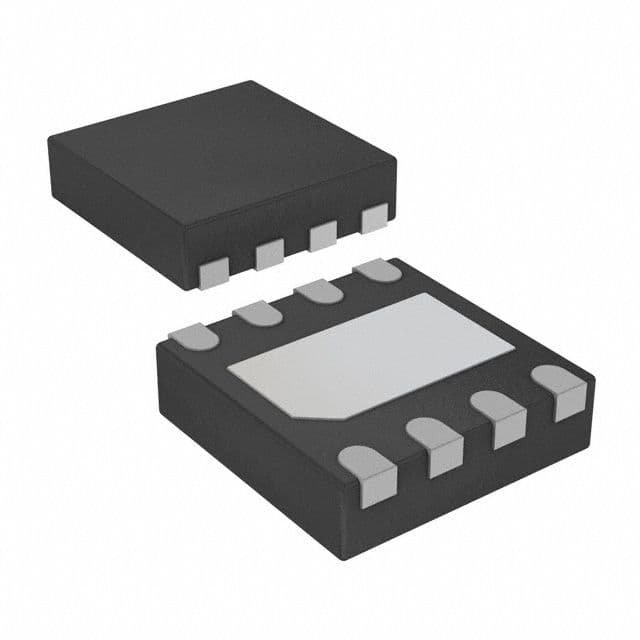

Low skew clock driver featuring 4 true outputs and 0 inverted outputs, operating at frequencies up to 100MHz. This integrated circuit supports a maximum duty cycle of 55% and operates within a supply voltage range of 2.97V to 3.63V. It is housed in a PDSO8, TDFN-8 package and is RoHS compliant. The component is supplied on tape and reel, with a package quantity of 3000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI53102-A2-GMR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Frequency | 100MHz |
| Input | Clock |
| Max Duty Cycle | 55% |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Number of Circuits | 1 |
| Number of Outputs | 2 |
| Operating Supply Current | 12mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| PLL | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
