Silicon Labs
SI53159-A01AGMR
Low Skew Clock Driver, 53159 Series, 18 True Output(s), 0 Inverted Output(s), LEAD FREE, MO-220-VGGD8, QFN-48
Frequency100MHz
PackageQFN
Current60mA
Quick Jump:
Technical Specifications
Silicon Labs SI53159-A01AGMR technical specifications.
General
Package/Case
QFN
Input
Clock
Max Duty Cycle
55%
Max Frequency
100MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Outputs
9
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
PLL
No
RoHS Compliant
Yes
Series
Si53159
Supply Current
60mA
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI53159-A01AGMR Datasheet
Download the complete datasheet for Silicon Labs SI53159-A01AGMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

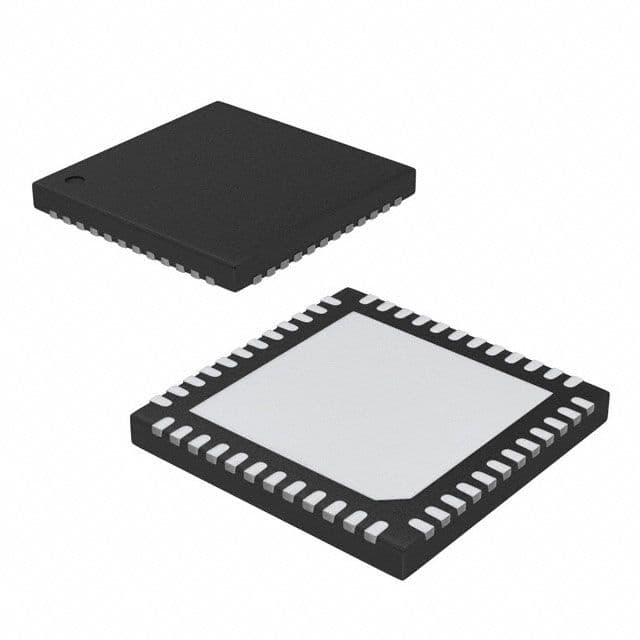

Product Images
