High-performance clock generator with 2 LVDS outputs, generating a 350MHz output frequency from a 1MHz to 711MHz input clock. Features a frequency stability of 20ppm and operates within a supply voltage range of 1.71V to 3.63V, with a typical 3.3V operating voltage. This 36-pin QFN EP package component offers PLL functionality and is designed for surface-mount technology (SMT) with tray packaging. Suitable for applications requiring precise clock generation across a wide temperature range of -40°C to 85°C.
Frequency350MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs SI5317B-C-GM technical specifications.
General
Package/Case
QFN
Frequency
350MHz
Frequency Stability
20ppm
Input
Clock
Max Frequency
350MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
1.71V
Number of Circuits
1
Number of Elements
1
Number of Outputs
2
Operating Supply Voltage
3.3V
Output Format
LVDS
Packaging
Tray
PLL
Yes
RoHS Compliant
Yes
Series
DSPLL®
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI5317B-C-GM Datasheet
Download the complete datasheet for Silicon Labs SI5317B-C-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

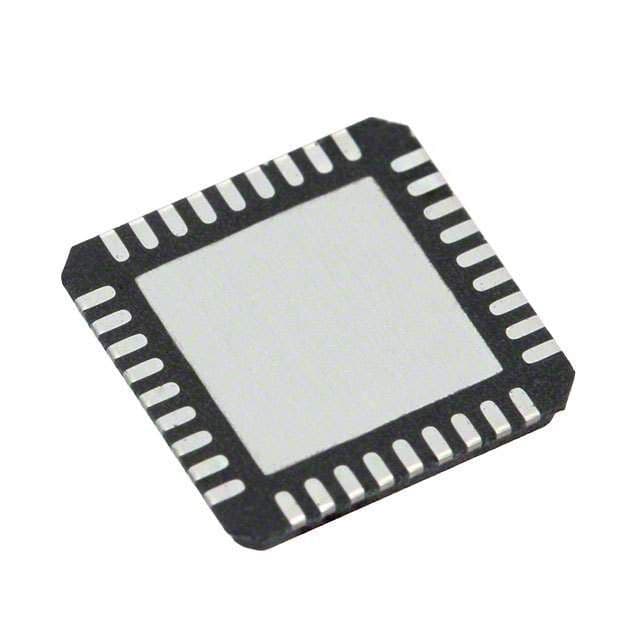

Product Images
