High-performance clock generator featuring a 100MHz output frequency, derived from a 1MHz to 711MHz input. This integrated circuit offers 2 outputs with a frequency stability of 20ppm. Operating within a supply voltage range of 1.71V to 3.63V, it supports a 3.3V nominal supply. The device is housed in a 36-pin QFN package with SMD/SMT termination, suitable for operation between -40°C and 85°C. It incorporates a PLL and is RoHS compliant.
Frequency100MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs SI5317D-C-GM technical specifications.
General
Package/Case
QFN
Frequency
100MHz
Frequency Stability
20ppm
Input
Clock
Max Frequency
100MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
1.71V
Number of Circuits
1
Number of Elements
1
Number of Outputs
2
Operating Supply Voltage
3.3V
Packaging
Tray
PLL
Yes
RoHS Compliant
Yes
Series
DSPLL®
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI5317D-C-GM Datasheet
Download the complete datasheet for Silicon Labs SI5317D-C-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

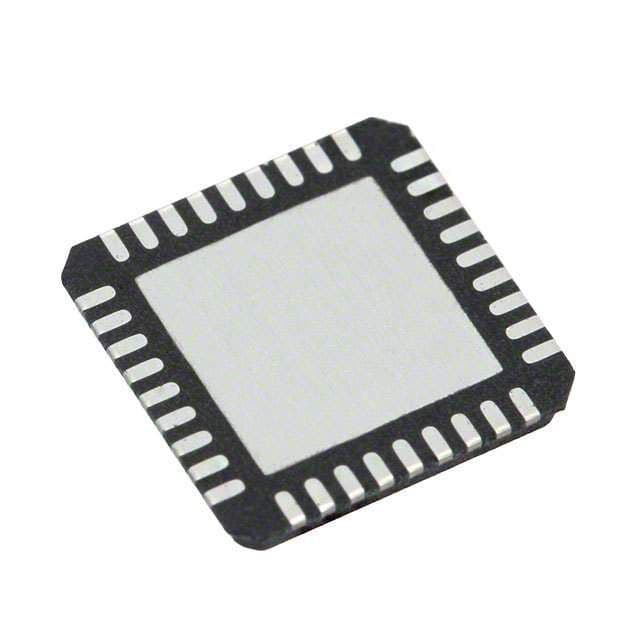

Product Images
