This clock generator IC synthesizes frequencies from 0.002MHz to 710MHz, with a maximum output frequency of 346MHz. Featuring two outputs and a PLL, it operates from a 1.71V to 3.63V supply voltage, typically 3.3V. Encased in a 36-pin QFN package measuring 6mm x 6mm x 0.83mm, this RoHS compliant component supports crystal input and operates within a temperature range of -40°C to 85°C.
Frequency346MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs SI5326C-C-GM technical specifications.
General
Package/Case
QFN
Frequency
346MHz
Height
0.83mm
Input
Crystal
Length
6mm
Max Frequency
346MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
279mA
Max Supply Voltage
3.63V
Min Supply Voltage
1.71V
Number of Circuits
1
Number of Elements
1
Number of Outputs
2
Operating Supply Voltage
3.3V
Package Quantity
490
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
DSPLL®
Weight
0.003266oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI5326C-C-GM Datasheet
Download the complete datasheet for Silicon Labs SI5326C-C-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

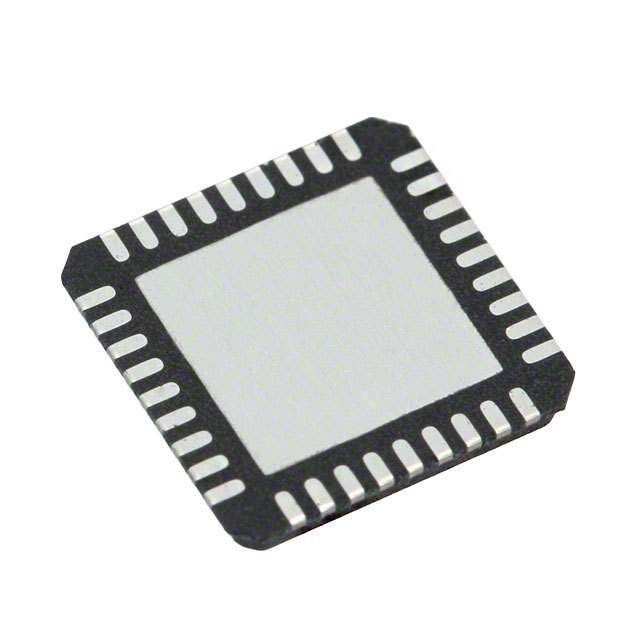

Product Images
