SILICON LABS

SI53322-B-GM

Datasheet

1.25GHz Clock Buffer, 4 Ch, LVCMOS, QFN-16

Silicon Labs

SI53322-B-GM

Name: SI53322-B-GM Silicon Labs
Brand: Silicon Labs
SKU: SI53322-B-GM

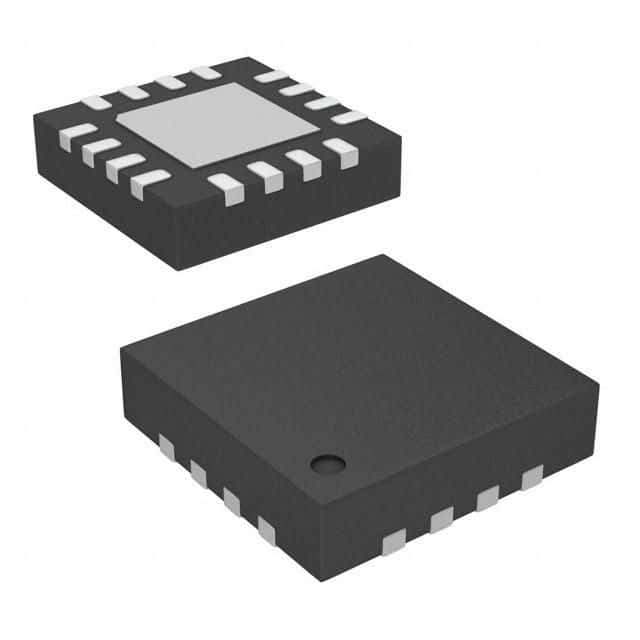

1.25GHz Clock Buffer, 4 Ch, LVCMOS, QFN-16

High-performance, low-skew clock driver featuring 4 true CMOS outputs and a maximum frequency of 1.25GHz. This integrated circuit operates with LVCMOS input and offers a propagation delay of 0.975ns. Designed for surface mounting, it comes in a compact 3x3mm QFN package with a height of 0.85mm. The device supports a supply voltage range of 2.38V to 3.63V and operates across an extended temperature range of -40°C to 85°C.

Frequency1.25GHz

PackageQFN

Current55mA

MountingSurface Mount

Quick Jump:

Technical Specifications

Silicon Labs SI53322-B-GM technical specifications.

General

Package/Case	QFN
Frequency	1.25GHz
Height	0.85mm
Input	LVCMOS
Length	3mm
Logic Function	Clock
Max Duty Cycle	53%
Max Frequency	1.25GHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	3.63V
Min Supply Voltage	2.38V
Mount	Surface Mount
Number of Circuits	1
Number of Outputs	2
Package Quantity	100
Packaging	Rail/Tube
Propagation Delay	0.975ns
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Si53322
Supply Current	55mA
Width	3mm
