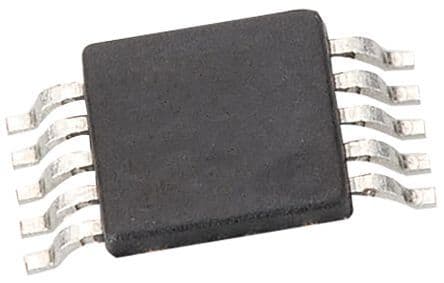

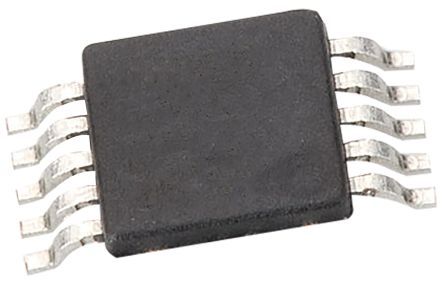

The SI5351A-B-GT is a 2-channel clock generator with a maximum frequency of 200MHz. It operates within a temperature range of -40°C to 85°C and consumes an operating supply current of 35mA. The device is packaged in a lead-free MSOP package with dimensions of 4mm in length and 0.85mm in height. It is RoHS compliant and features a PLL for frequency synthesis. The device is available in a packaging quantity of 50 units per rail or tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI5351A-B-GT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | MSOP |
| Frequency | 200MHz |
| Height | 0.85mm |
| Input | Crystal |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Duty Cycle | 55% |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Circuits | 2 |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| Operating Supply Current | 35mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| PLL | Yes |
| RoHS Compliant | Yes |
| Series | MultiSynth™ |
| Width | 4mm |
| RoHS | Compliant |
