Silicon Labs
SI5375B-A-BL
Processor Specific Clock Generator, 808MHz, CMOS, PBGA80, 10 X 10 MM, PLASTIC, MO-192, BGA-80
Frequency808MHz
PackageBGA
Current980mA
Quick Jump:
Technical Specifications
Silicon Labs SI5375B-A-BL technical specifications.
General
| Package/Case | BGA |
| Input | Clock |
| Max Frequency | 808MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.75V |
| Min Supply Voltage | 1.71V |
| Number of Circuits | 4 |
| Number of Outputs | 4 |
| Package Quantity | 240 |
| Packaging | Tray |
| PLL | Yes |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | DSPLL® |
| Supply Current | 980mA |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Silicon Labs SI5375B-A-BL Datasheet
Download the complete datasheet for Silicon Labs SI5375B-A-BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

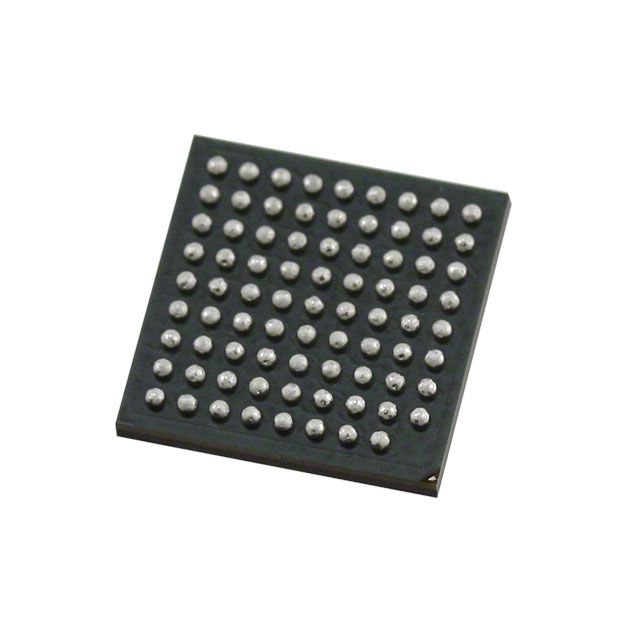

Product Images
