High-side based peripheral driver IC featuring two channels, each with a 500mA output current capability. This SOIC-packaged component operates with a supply voltage range of 4.5V to 24V and offers a maximum power dissipation of 1.2W. Key performance specifications include a propagation delay of 60ns, a fall time of 20ns, and a turn-on delay time of 30ns, supporting frequencies up to 8MHz. With an isolation voltage of 5kV and a wide operating temperature range from -40°C to 125°C, this RoHS compliant driver is suitable for demanding applications.
Frequency8MHz
PackageSOIC
Current3.5mA
Power1.2W
Quick Jump:
Technical Specifications
Silicon Labs SI8230BD-B-IS technical specifications.
General
Package/Case
SOIC
Fall Time
20ns
Frequency
8MHz
Height
2.35mm
Isolation Voltage
5kV
Length
10.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Power Dissipation
1.2W
Max Supply Voltage
24V
Min Supply Voltage
4.5V
Number of Channels
2
Number of Drivers
2
Number of Outputs
2
Output Current
500mA
Output Voltage
40mV
Package Quantity
46
Packaging
Rail/Tube
Power Dissipation
1.2W
Propagation Delay
60ns
RoHS Compliant
Yes
Supply Current
3.5mA
Turn-On Delay Time
30ns
Weight
0.017932oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8230BD-B-IS Datasheet
Download the complete datasheet for Silicon Labs SI8230BD-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

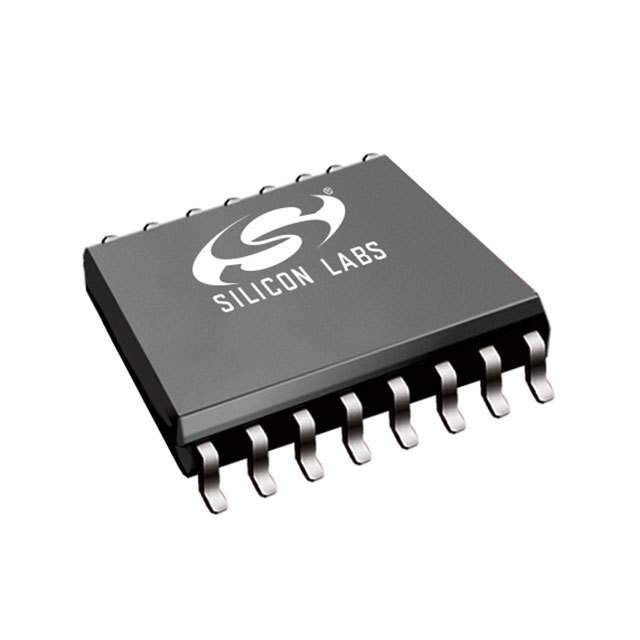

Product Images
