Single-channel, unidirectional gate driver with 0.6A high-level output current and 400mA low-level output current. Features 3.75kV isolation, 8.5ns fall time, and 50ns propagation delay. Operates from a 5V to 30V supply voltage with a maximum power dissipation of 300mW. DIP package, RoHS compliant, and approved by CSA, VDE, UR, and CQC.
PackageDIP
Current2mA
Quick Jump:
Technical Specifications
Silicon Labs Si8261AAC-C-IP technical specifications.
General
Approvals
CSA, VDE, UR, CQC
Package/Case
DIP
Channel Type
Unidirectional
Fall Time
8.5ns
Height
3.43mm
High Level Output Current
600mA
Isolated Power
No
Length
9.9mm
Low Level Output Current
400mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Power Dissipation
300mW
Max Supply Voltage
30V
Min Supply Voltage
5V
Number of Channels
1
Number of Drivers
1
Number of Outputs
2
Output Current
10mA
Output Voltage
400mV
Package Quantity
96
Packaging
Rail/Tube
Propagation Delay
50ns
Pulse Width Distortion (PWD)
10ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Si8261AAC
Supply Current
2mA
Turn-On Delay Time
60ns
Type
General Purpose
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs Si8261AAC-C-IP Datasheet
Download the complete datasheet for Silicon Labs Si8261AAC-C-IP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

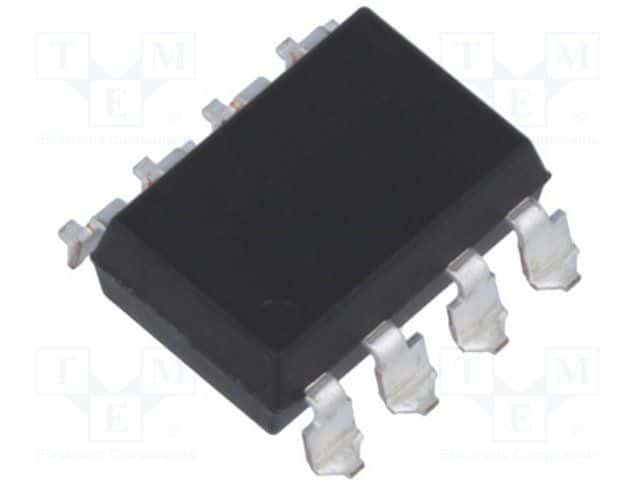

Product Images
