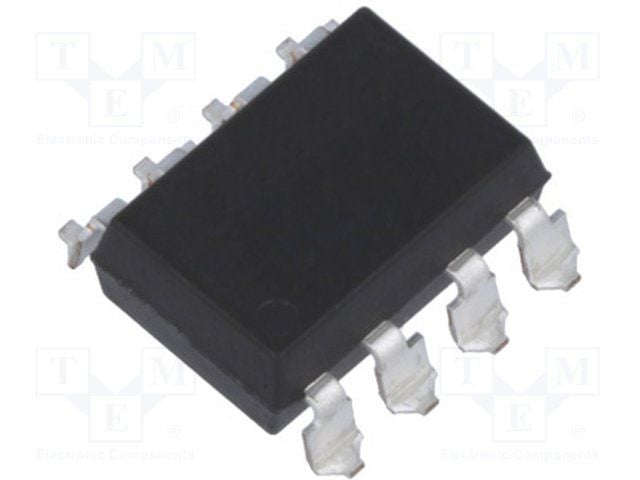

600mA unidirectional gate driver IC featuring capacitive coupling for enhanced isolation. Delivers 600mA high-level and 400mA low-level output current with a 5V to 30V supply voltage range. Operates across a -40°C to 125°C temperature range, with 8.5ns fall time and 50ns propagation delay. Packaged in an 8-DIP gull wing, this RoHS compliant component is approved by CSA, VDE, UR, and CQC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs Si8261ABC-C-IP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, VDE, UR, CQC |
| Package/Case | DIP |
| Channel Type | Unidirectional |
| Fall Time | 8.5ns |
| Height | 3.43mm |
| High Level Output Current | 600mA |
| Isolated Power | No |
| Length | 9.9mm |
| Low Level Output Current | 400mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 2 |
| Output Current | 10mA |
| Output Voltage | 400mV |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Propagation Delay | 50ns |
| Pulse Width Distortion (PWD) | 10ns |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Si8261ABC |
| Supply Current | 2mA |
| Turn-On Delay Time | 60ns |
| Type | General Purpose |
| Width | 6.6mm |
| RoHS | Compliant |
