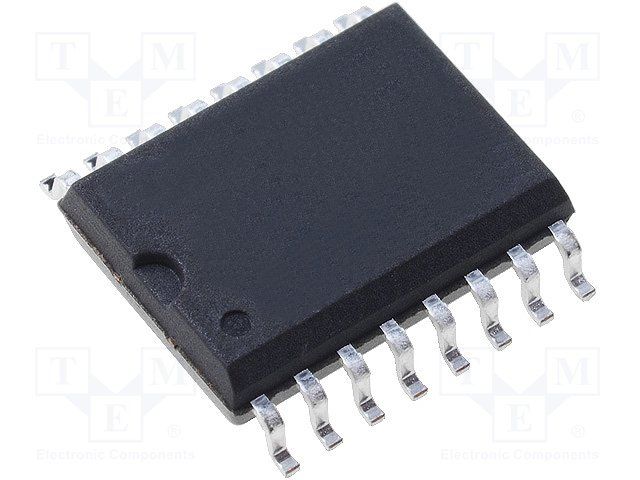

The SI8442BB-D-IS is a 4-channel unidirectional interface IC with a data rate of 150Mbps. It is packaged in a SOIC package and operates over a temperature range of -40°C to 125°C. The device has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.7V. It is RoHS compliant and has a propagation delay of 9.5ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI8442BB-D-IS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Channel Type | Unidirectional |
| Data Rate | 150Mbps |
| Depth | 2.65mm |
| Isolated Power | No |
| Length | 10.3mm |
| Max Input Current | 6.8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Operating Supply Current | 6mA |
| Packaging | Rail/Tube |
| Propagation Delay | 9.5ns |
| Pulse Width Distortion (PWD) | 2.5ns |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 6ns |
| Type | General Purpose |
| Weight | 0.019313oz |
| Width | 7.5mm |
| RoHS | Compliant |
