Frequency1MHz
PackageQFN
Current Rating20A
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs SI8503-B-GM technical specifications.
General
Accuracy
5%
Package/Case
QFN
Current Rating
20A
Current Sensing
20A
Frequency
1MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
7mA
Mount
Surface Mount
Number of Channels
1
Operating Supply Voltage
5.5V
Output Type
Analog
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Sensitivity
98mV/A
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8503-B-GM Datasheet
Download the complete datasheet for Silicon Labs SI8503-B-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

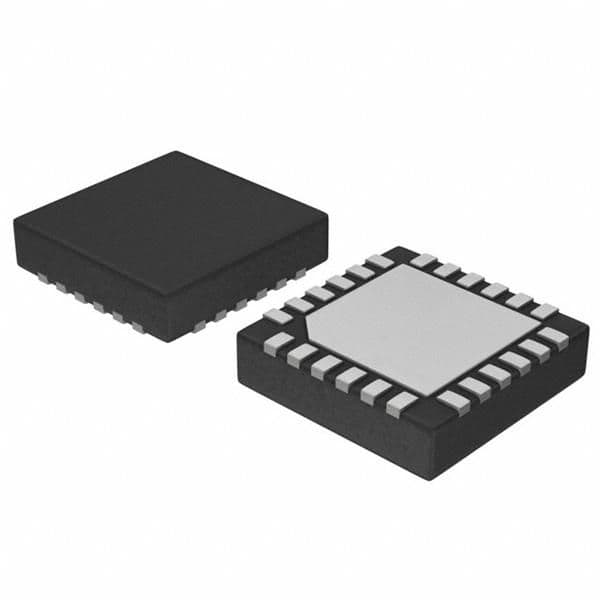

Product Images
