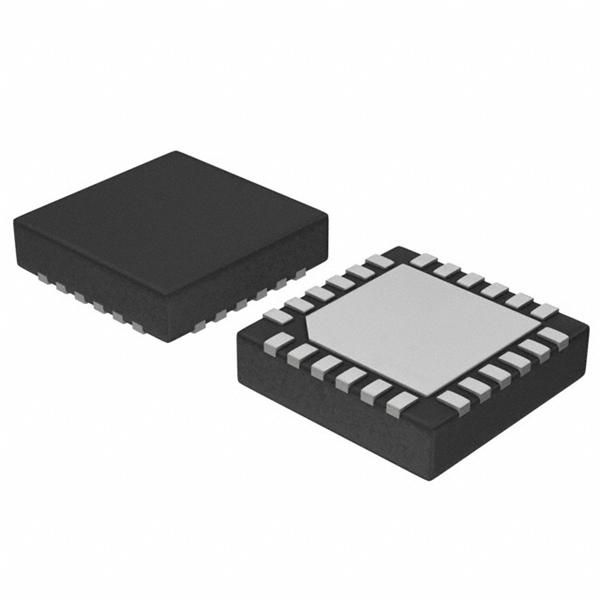

The SI8516-B-IM is a 1-channel Hall effect current sensor with an accuracy of 5%. It operates within a temperature range of -40°C to 125°C and has a maximum supply current of 7mA. The sensor is available in a QFN package and is RoHS compliant. It can sense currents up to 20A and has a sensitivity of 98mV/A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI8516-B-IM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 5% |
| Package/Case | QFN |
| Current Rating | 20A |
| Current Sensing | 20A |
| Frequency | 1MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 7mA |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 5.5V |
| Output Type | Analog |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sensitivity | 98mV/A |
| RoHS | Compliant |
