Quad channel digital isolator with 150Mbps data rate and 2.5kV isolation voltage. Features unidirectional channels, 13ns propagation delay, and 4.5ns pulse width distortion. Operates from a 2.7V to 5.5V supply with low operating current of 3.6mA. Packaged in a 16-pin SOIC surface mount package, this component is RoHS compliant and rated for automotive applications.
PackageSOIC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Silicon Labs Si8640BB-B-IS technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
150Mbps
Depth
1.25mm
Isolated Power
No
Isolation Voltage
2.5kV
Length
9.9mm
Max Input Current
9.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
275mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Operating Supply Current
3.6mA
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
13ns
Pulse Width Distortion (PWD)
4.5ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Type
General Purpose
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs Si8640BB-B-IS Datasheet
Download the complete datasheet for Silicon Labs Si8640BB-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

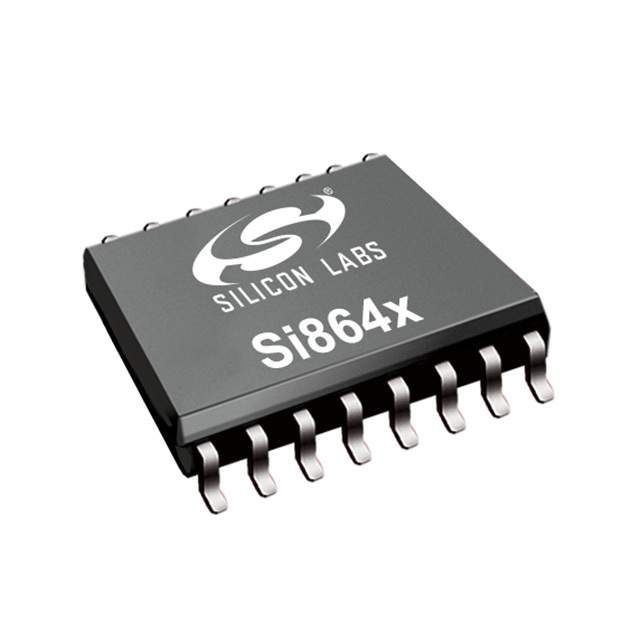

Product Images
