Four-channel digital isolator, general-purpose, 150Mbps data rate, 5kV isolation voltage. Features unidirectional channels, 13ns propagation delay, and 4.5ns pulse width distortion. Operates from a 2.5V to 5.5V supply, with a maximum power dissipation of 275mW. Packaged in a 16-pin SOIC, this component is RoHS compliant and rated for automotive applications.
PackageSOIC
PolarityUnidirectional
Quick Jump:
Technical Specifications
Silicon Labs SI8642ED-B-IS technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
150Mbps
Depth
2.65mm
Isolated Power
No
Isolation Voltage
5kV
Length
10.3mm
Max Input Current
6.6mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
275mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
4
Operating Supply Current
11mA
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
13ns
Pulse Width Distortion (PWD)
4.5ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Turn-On Delay Time
10ns
Type
General Purpose
Weight
0.001764oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8642ED-B-IS Datasheet
Download the complete datasheet for Silicon Labs SI8642ED-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

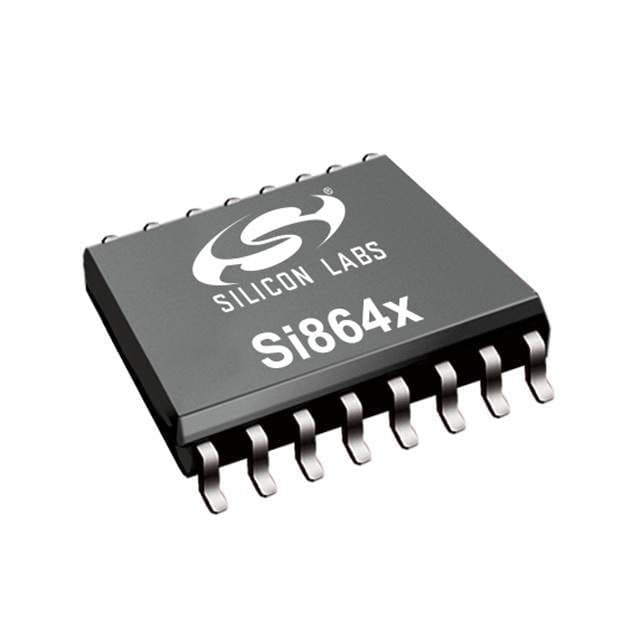

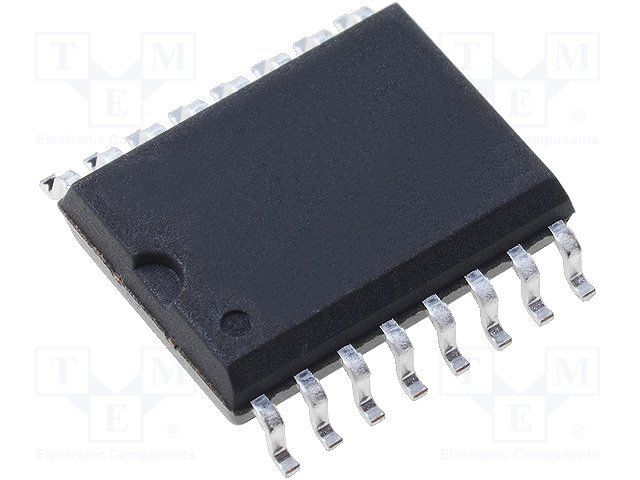

Product Images
