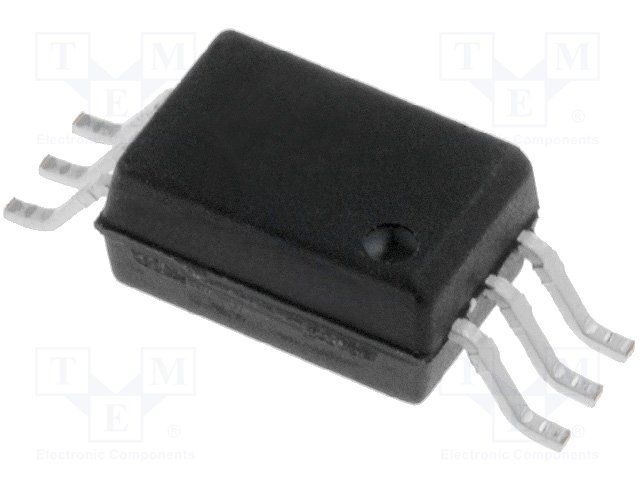

The SI8719BD-A-IS is a general purpose unidirectional isolated interface IC with a data rate of 15Mbps. It operates over a temperature range of -40°C to 125°C and has a maximum power dissipation of 253mW. The device is available in a 100-pin SDIP package and is compliant with RoHS regulations. It is designed for use in automotive applications and meets the requirements of AEC-Q100.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs SI8719BD-A-IS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs SI8719BD-A-IS technical specifications.
| Package/Case | SDIP |
| Channel Type | Unidirectional |
| Data Rate | 15Mbps |
| Isolated Power | No |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 253mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of Channels | 1 |
| Operating Supply Current | 1.7mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Propagation Delay | 50ns |
| Pulse Width Distortion (PWD) | 25ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Turn-On Delay Time | 30ns |
| Type | General Purpose |
| RoHS | Compliant |
