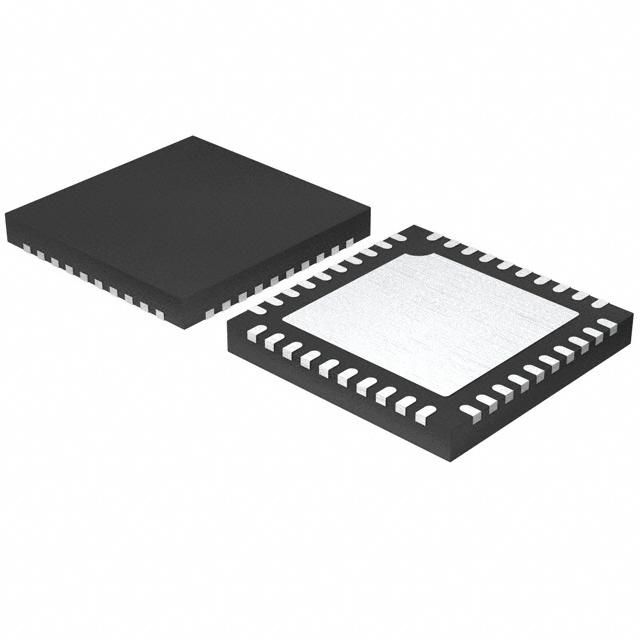

32-bit ARM microprocessor with 32KB FLASH and 8KB RAM. Features a 50MHz core frequency, 28 programmable I/O pins, and multiple interfaces including I2C, SPI, UART, and USART. Operates within a 1.8V to 3.8V supply voltage range and offers 20 ADC channels and 6 PWM channels. Packaged in a 40-pin QFN with dimensions of 4.65mm x 6mm x 0.85mm, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency50MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs SIM3L134-C-GM technical specifications.
General
Package/Case
QFN
Core Architecture
ARM
Data Bus Width
32b
Frequency
50MHz
Height
0.85mm
Interface
I2C, SPI, IrDA, UART, USART
Length
4.65mm
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Power Dissipation
650mW
Max Supply Voltage
3.8V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
20
Number of I/Os
28
Number of I2C Channels
1
Number of Programmable I/O
28
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
SiM3L1xx
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SIM3L134-C-GM Datasheet
Download the complete datasheet for Silicon Labs SIM3L134-C-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
