Technical Specifications
Silicon Labs SL28PCIE26ALC technical specifications.
General
Package/Case
QFN
Height
0.8mm
Input
Crystal
Length
5.1mm
Max Duty Cycle
53%
Max Frequency
100MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Elements
1
Number of Outputs
4
Operating Supply Current
50mA
Operating Supply Voltage
3.3V
Package Quantity
624
Packaging
Rail/Tube
PLL
Yes
RoHS Compliant
Yes
Series
EProClock®
Weight
0.001764oz
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SL28PCIE26ALC Datasheet
Download the complete datasheet for Silicon Labs SL28PCIE26ALC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

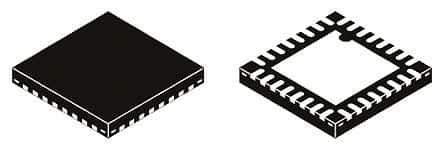

Product Images
