Transformer; Current; To monitor AC current; 200:5; 50 to 400 Hz; + 1%; Screw
Frequency400Hz
Package200
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Simpson Electric 37022 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Simpson Electric 37022 technical specifications.
General
| Accuracy | 1% |
| Package/Case | 200 |
| Frequency | 400Hz |
| Height | 96.01mm |
| Input Current | 200A |
| Length | 89.66mm |
| Number of Outputs | 1 |
| Output Current | 5A |
| Termination | Screw |
| Thickness | 2.15inch |
| Width | 0.071inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Simpson Electric 37022 Datasheet
Download the complete datasheet for Simpson Electric 37022 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

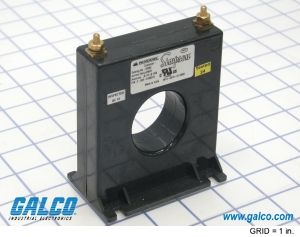

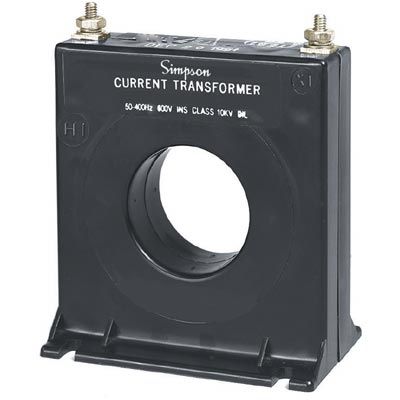

Product Images
