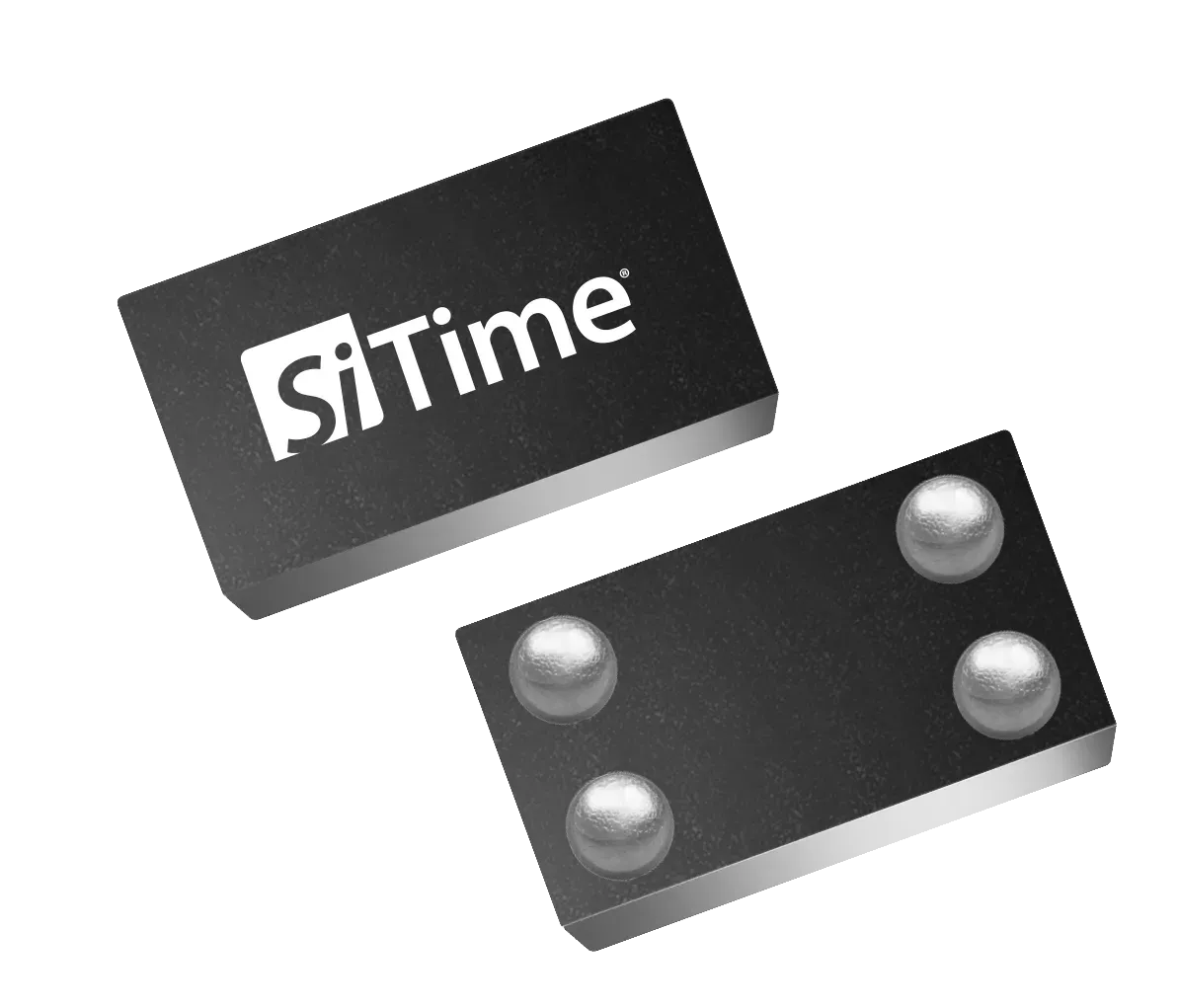

This programmable MEMS oscillator provides a factory-programmable output from 1 Hz to 32.768 kHz for low-frequency timing and pulse-per-second functions. It operates from a 1.2 V to 3.63 V supply and draws as little as 0.9 µA typical core current at 1.8 V with no load. The device offers 20 ppm frequency tolerance at 25°C, low-jitter operation, and programmable NanoDrive output swing to reduce power. It is designed to replace low-frequency crystal timing elements while eliminating external load capacitors and supporting chip-scale and small SMD implementations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Sitime SiT1534AI-H4-DCC-00.001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Sitime SiT1534AI-H4-DCC-00.001 technical specifications.
| Output Frequency Range | 1 to 32768Hz |
| Frequency Tolerance | 20ppm |
| Supply Voltage Range | 1.2 to 3.63V |
| Core Operating Current | 0.9 typµA |
| Output Stage Operating Current | 0.065 to 0.125µA/Vpp |
| Output Rise/Fall Time | 100 to 200ns |
| Output Duty Cycle | 48 to 52% |
| Programmable Output Swing | 0.20 to 0.80V |
| Period Jitter | 35ns RMS |
| Aging | -1 to 1 first yearppm |
| HBM ESD Protection | 3000V |
| Storage Temperature | -65 to 150°C |
