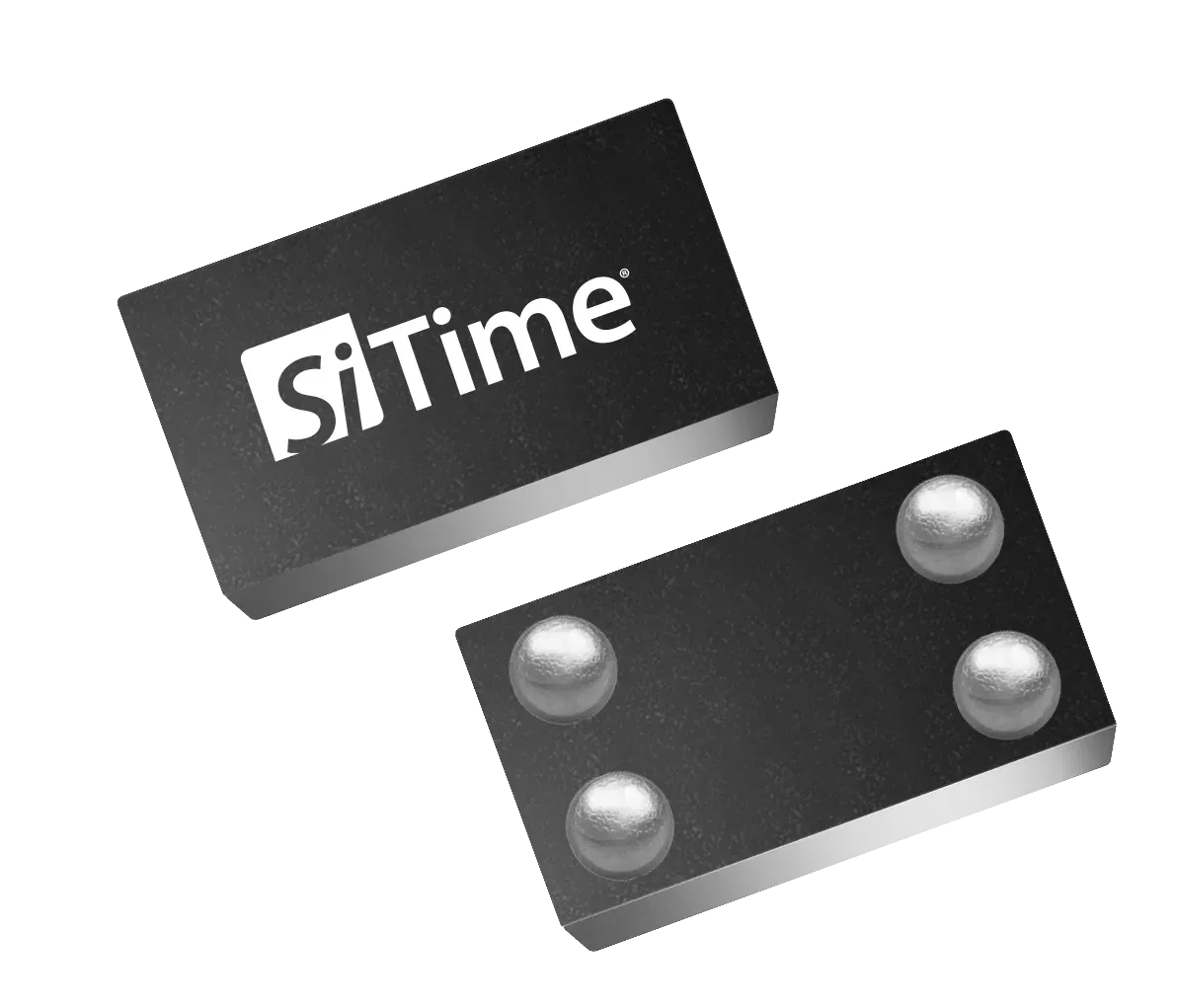

This device is a 32.768 kHz MEMS temperature-compensated oscillator in a 1.5 x 0.8 mm chip-scale package. It operates from a 1.5 V to 3.63 V supply and draws 0.99 μA typical core current at 1.8 V with no load. Valid output is reached in 180 ms typical and 300 ms maximum up to 60°C, and the family supports commercial and industrial temperature ranges depending on ordering option. The 4-pin CSP provides a clock output with programmable NanoDrive voltage swing, and the device does not require an external Vdd bypass capacitor under normal operating conditions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Sitime SiT1552AI-JF-DCC-32.768 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Sitime SiT1552AI-JF-DCC-32.768 technical specifications.
| Oscillator Type | 32 kHz TCXO |
| Output Frequency | 32.768kHz |
| Frequency Stability Options | ±5, ±10, ±20ppm |
| Operating Supply Voltage | 1.5 to 3.63V |
| Core Supply Current | 0.99 typμA |
| Start-up Time at Power-up | 180 typ, 300 maxms |
| Long Term Jitter | 2.5 maxμspp |
| Period Jitter | 35 typns RMS |
| Commercial Operating Temperature | 0 to 70°C |
| Industrial Operating Temperature | -40 to 85°C |
| Output Clock Duty Cycle | 48 to 52% |
| LVCMOS Rise/Fall Time | 100 typ, 200 max at 15 pFns |
| ESD Protection HBM | 3000V |
| Mechanical Shock Resistance | 10000g |
| Storage Temperature | -65 to 150°C |
Download the complete datasheet for Sitime SiT1552AI-JF-DCC-32.768 to view detailed technical specifications.
