The AS195-306LF is a single-pole five-throw RF switch from Skyworks Solutions. It operates over a frequency range of 100 MHz to 2 GHz and has an impedance of 50 ohms. The switch is packaged in a QFN package and is compliant with RoHS regulations. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Frequency2GHz
PackageQFN
Quick Jump:
Technical Specifications
Skyworks Solutions AS195-306LF technical specifications.
General
| Package/Case | QFN |
| Frequency | 2GHz |
| IIP3 | 55dBm |
| Impedance | 50R |
| Insertion Loss | 1dB |
| Insertion Loss | 1.1dB |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Switches | 1 |
| Operating Frequency | 100 MHz to 2 GHz |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Throw Configuration | SP5T |
| Weight | 0.002014oz |
Compliance
| RoHS | Compliant |
Datasheet
Skyworks Solutions AS195-306LF Datasheet
Download the complete datasheet for Skyworks Solutions AS195-306LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

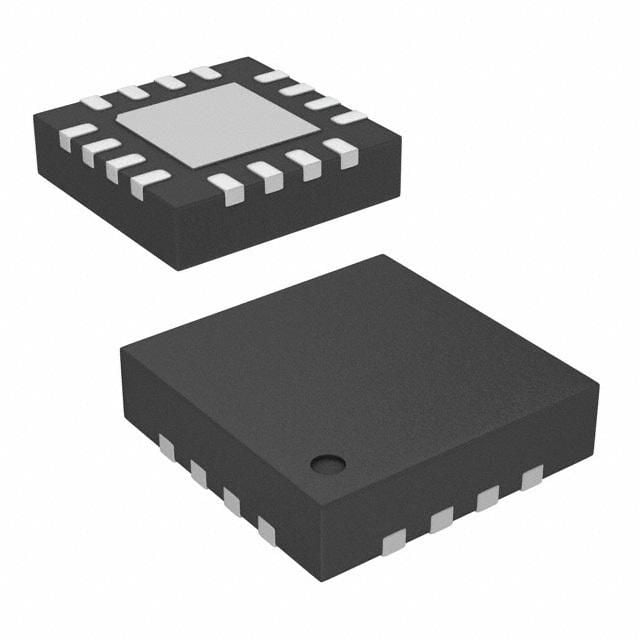

Product Images
