High-performance SP8T RF switch IC designed for wireless applications. Features a wide frequency range from 100MHz to 3GHz with a maximum insertion loss of 0.6dB at 2GHz. Offers excellent linearity with an IIP3 of 66dBm and P1dB of 37dBm, operating at a 5V supply voltage. Packaged in a compact 2x2mm QFN-14, this RoHS-compliant component is suitable for demanding environments with an operating temperature range of -40°C to 90°C.
Frequency3GHz
PackageQFN
Quick Jump:
Technical Specifications
Skyworks Solutions SKY13418-485LF technical specifications.
General
Package/Case
QFN
Frequency
3GHz
IIP3
66dBm
Impedance
50R
Insertion Loss
0.6dB
Max Frequency
3GHz
Max Operating Temperature
90°C
Min Operating Temperature
-40°C
Number of Switches
8
Operating Supply Voltage
5V
P1dB
37dBm
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Test Frequency
2GHz
Throw Configuration
SP8T
Compliance
RoHS
Compliant
Datasheet
Skyworks Solutions SKY13418-485LF Datasheet
Download the complete datasheet for Skyworks Solutions SKY13418-485LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

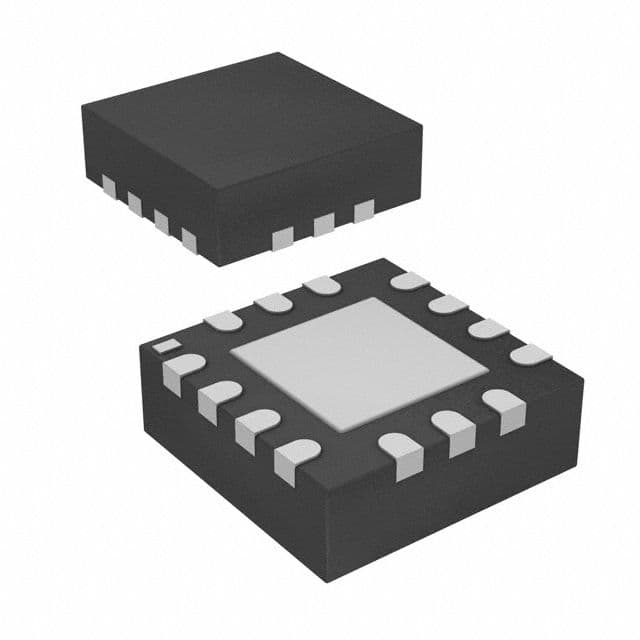

Product Images
