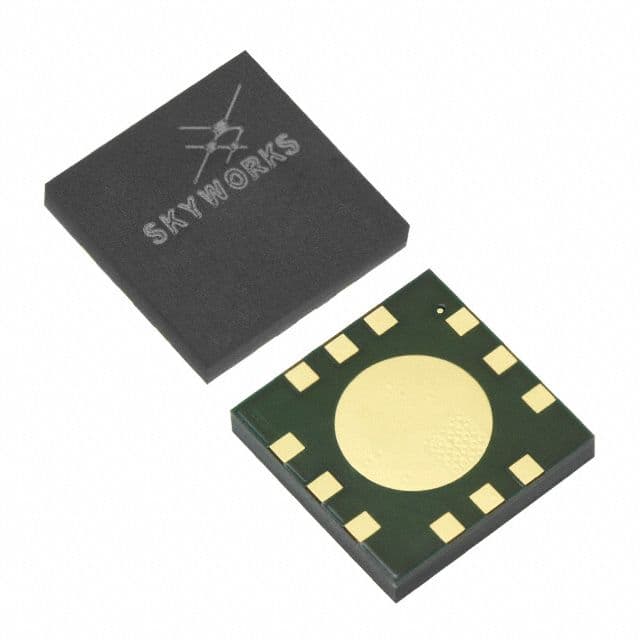

The SKY65116-21 is a single-channel SMT RF amplifier with a gain of 35dB and an operating frequency range of 390 MHz to 500 MHz. It has a maximum power dissipation of 3.7W and a maximum supply current of 1.3A. The amplifier operates within a temperature range of -40°C to 85°C and is packaged in a 12-pin SMT package. It is RoHS compliant and suitable for use in surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Skyworks Solutions SKY65116-21 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 500MHz |
| Gain | 35dB |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3.7W |
| Max Supply Current | 1.3A |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 3.3V |
| Mount | Surface Mount |
| Noise Figure | 6dB |
| Number of Channels | 1 |
| Operating Frequency | 390 MHz to 500 MHz |
| Operating Supply Current | 1.3A |
| Operating Supply Voltage | 3.6V |
| P1dB | 32.5dBm |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.7W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 1.3A |
| Test Frequency | 500MHz |
| RoHS | Compliant |
