Solid State
1N5806
Rectifier Diode, 1 Phase, 1 Element, 2.5A, 150V V(RRM), Silicon, DO-204AP, DO-204AP, 2 PIN
PackageDO-204AP
MountingThrough Hole
Quick Jump:
Technical Specifications
Solid State 1N5806 technical specifications.
General
| Average Rectified Current | 2.5A |
| Package/Case | DO-204AP |
| Forward Current | 2.5A |
| Max Forward Surge Current (Ifsm) | 35A |
| Max Operating Temperature | 175°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Voltage (DC) | 150V |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 25ns |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Solid State 1N5806 Datasheet
Download the complete datasheet for Solid State 1N5806 to view detailed technical specifications.
No datasheet is available for this part.

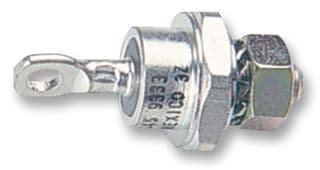

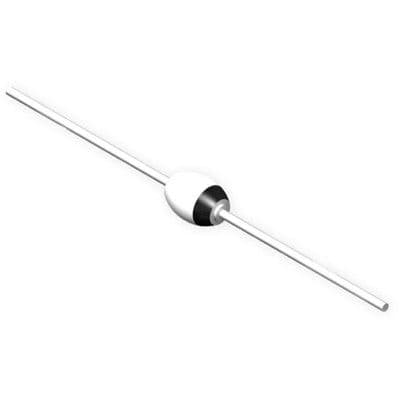

Product Images
