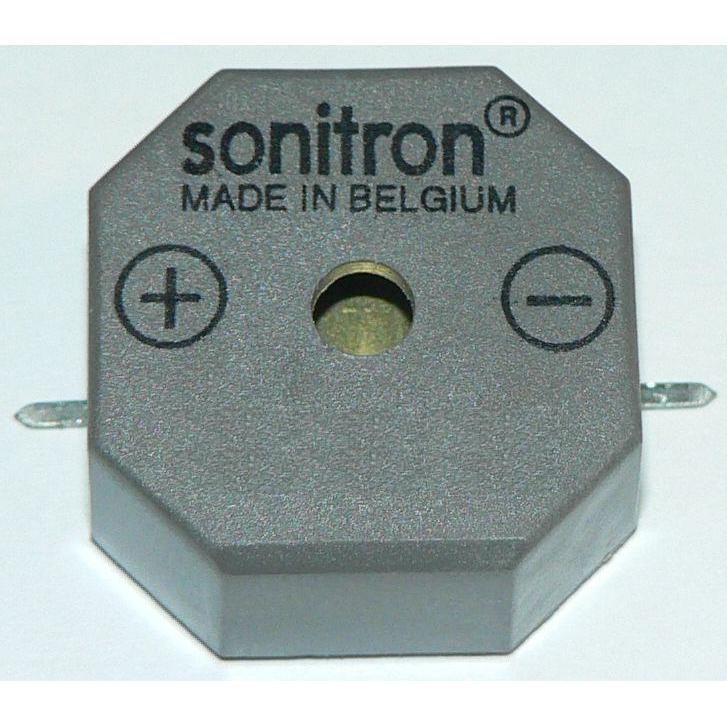

The SMA-21-S is a surface mount electromechanical transducer with a depth of 21mm and a height of 9.5mm. It operates over a temperature range of -20°C to 70°C and has a maximum supply voltage of 24V. The device requires a supply current of 3.8mA and is designed for PCB mount. It has a maximum frequency of 3.795kHz and a minimum frequency of 2.805kHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Sonitron SMA-21-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 21mm |
| Height | 9.5mm |
| Length | 21mm |
| Max Frequency | 3.795kHz |
| Min Frequency | 2.805kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 1.5V |
| Mount | PCB |
| Supply Current | 3.8mA |
| RoHS | Compliant |
Download the complete datasheet for Sonitron SMA-21-S to view detailed technical specifications.
