Technical Specifications
Spansion S29GL128P90TFCR10 technical specifications.
General
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | TSOP |
| Data Bus Width | 8b |
| Density | 128Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128Mb |
| Memory Type | NOR, , FLASH |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 91 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | S29GL-P |
| Supply Current | 110mA |
| Sync/Async | Asynchronous |
Compliance
| RoHS | Compliant |
Datasheet
Spansion S29GL128P90TFCR10 Datasheet
Download the complete datasheet for Spansion S29GL128P90TFCR10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

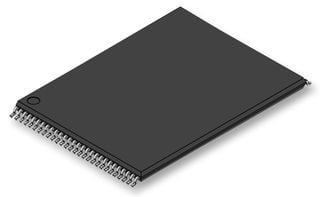

Product Images
