Variable transformer for general applications, featuring a 2A output current and 2A secondary current. This panel-mount unit operates at 60 Hz and has a package/case size of 120. Dimensions include a height of 47.6mm, width of 74.6mm, and length of 83.3mm. Termination is via solder.
Frequency60 Hz
Package120
Storage47.75mm
MountingPanel
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Staco 201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Staco 201 technical specifications.
General
| Package/Case | 120 |
| Height | 47.6mm |
| Length | 83.3mm |
| Mount | Panel |
| Operating Frequency | 60 Hz |
| Output Current | 2A |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| Secondary Current | 2A |
| Series | 200 |
| Size | 47.75mm |
| Termination | Solder |
| Weight | 3lb |
| Width | 74.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Staco 201 Datasheet
Download the complete datasheet for Staco 201 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

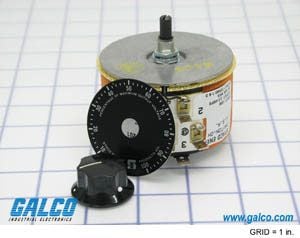

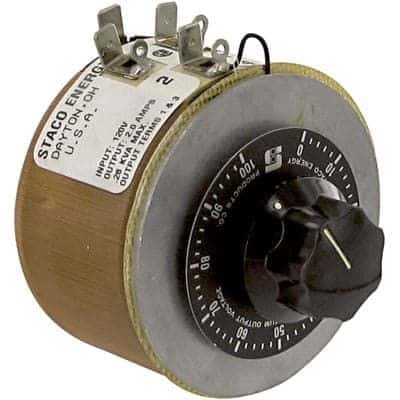

Product Images
