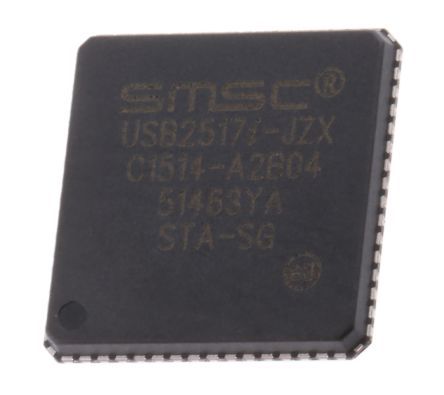

This device is a USB 2.0 high-speed hub controller with seven downstream ports and multi-transaction-translator architecture for embedded USB systems. It supports low-speed, full-speed, and high-speed downstream devices, operates from a single 3.3 V supply, and uses internal regulators for 1.8 V core operation. The controller provides OEM configurability through I²C EEPROM or SMBus, integrated USB termination resistors, programmable port mapping and differential-pair swapping, and selectable individual or ganged port power control and over-current sensing. The industrial-grade variant is specified for operation from -40 °C to +85 °C and is offered in a 64-pin 9 mm × 9 mm QFN package.
Sign in to ask questions about the Standard Communications USB2517I-JZX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Standard Communications USB2517I-JZX technical specifications.
| Data Rate | 480Mbps |
| Lead Free | Lead Free |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS | Not CompliantNo |
Download the complete datasheet for Standard Communications USB2517I-JZX to view detailed technical specifications.
