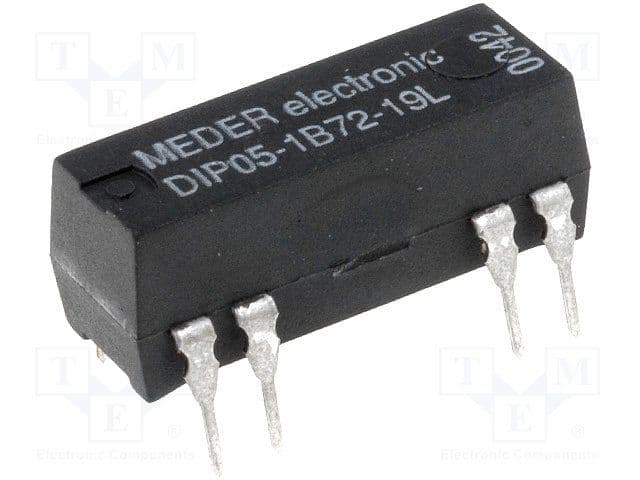

The DIP05-1B72-19L is a reed relay with a single-pole single-throw configuration, rated for 200V AC and 500mA contact current. The coil operates at 5V DC with a resistance of 500 ohms and a current of 10mA. The relay has a DIP package with a depth of 7.62mm and a length of 19.3mm, and is available in rail or tube packaging. It is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Standex-Meder Electronics DIP05-1B72-19L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Coil Current | 10mA |
| Coil Resistance | 500R |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Depth | 7.62mm |
| Length | 19.3mm |
| Operate Time | 700us |
| Packaging | Rail/Tube |
| Resistance | 500R |
| RoHS Compliant | No |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 200V |
| RoHS | Not Compliant |
