SPDT reed relay featuring a 5VDC coil voltage and 200 Ohm coil resistance, drawing 25mA. Offers a 250mA contact current rating and 175V switching voltage. Designed for through-hole PCB mounting with a DIP package, this non-latching relay has an operate time of 0.7ms and a release time of 1.5ms. Operating temperature range is -20°C to 70°C.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Standex-Meder Electronics DIP05-1C90-51L technical specifications.
General
| Approvals | UL |
| Package/Case | DIP |
| Coil Current | 25mA |
| Coil Resistance | 200R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 250mA |
| Height | 7.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 0.7ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 1.5ms |
| RoHS Compliant | No |
| Series | DIP |
| Switching Current | 200mA |
| Switching Voltage | 175V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Weight | 1.4g |
| Width | 19.3mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Standex-Meder Electronics DIP05-1C90-51L Datasheet
Download the complete datasheet for Standex-Meder Electronics DIP05-1C90-51L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

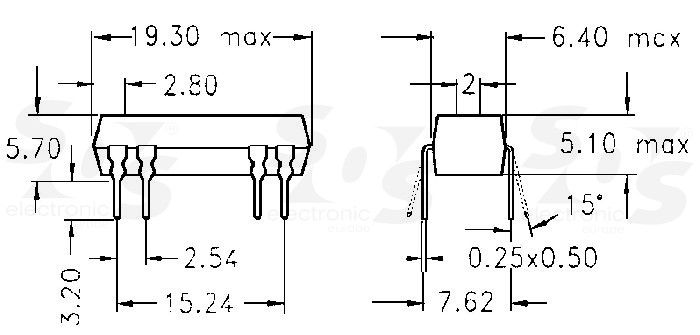

Product Images
