DPST reed relay featuring a 5VDC coil with 200 Ohms resistance and 25mA current draw. Contact ratings include 1A switching current and 200VDC switching voltage. Operate and release times are 0.5ms and 0.1ms respectively. Through-hole mounting with PC pin termination. Operating temperature range from -20°C to 70°C.
MountingThrough Hole
Quick Jump:
Technical Specifications

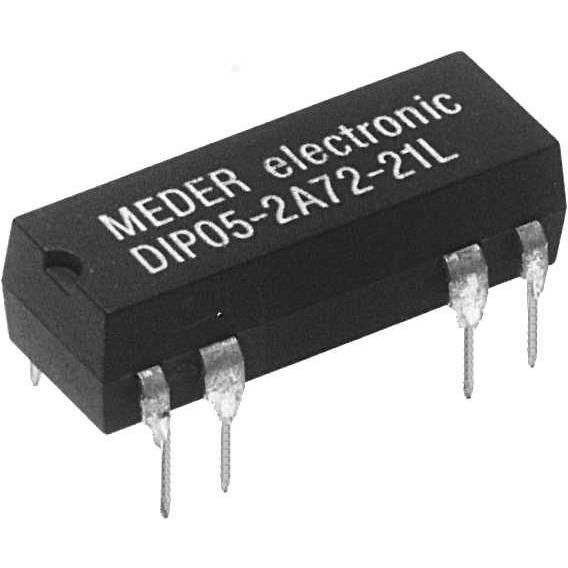

Standex-Meder Electronics DIP05-2A72-21L technical specifications.
General
| Coil Current | 25mA |
| Coil Resistance | 200R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.1ms |
| RoHS Compliant | No |
| Series | DIP |
| Switching Current | 1A |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Throw Configuration | DPST |
| Width | 7mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Standex-Meder Electronics DIP05-2A72-21L Datasheet
Download the complete datasheet for Standex-Meder Electronics DIP05-2A72-21L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
