Surface mount reed relay featuring SPST, momentary contact configuration. Offers a 1A contact current rating and 1000VDC contact voltage rating. Coil specifications include 5VDC input, 63mA coil current, and 313mW coil power. Designed for DC input and AC/DC output with gull wing terminations. Operating temperature range from -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Standex-Meder Electronics KT05-1A-40L-SMD technical specifications.
General
| Package/Case | SMD/SMT |
| Coil Current | 63mA |
| Coil Power | 313mW |
| Coil Resistance | 80R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 1A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 15 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| Relay Type | Reed |
| RoHS Compliant | Yes |
| Series | KT |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Standex-Meder Electronics KT05-1A-40L-SMD Datasheet
Download the complete datasheet for Standex-Meder Electronics KT05-1A-40L-SMD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

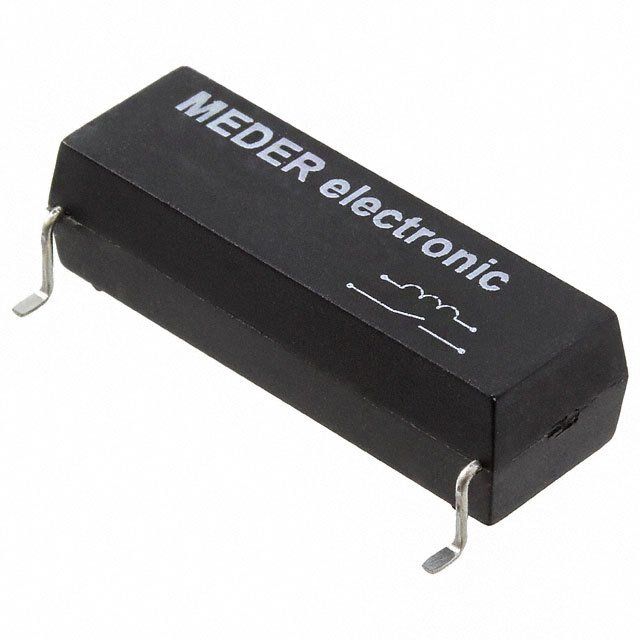

Product Images
