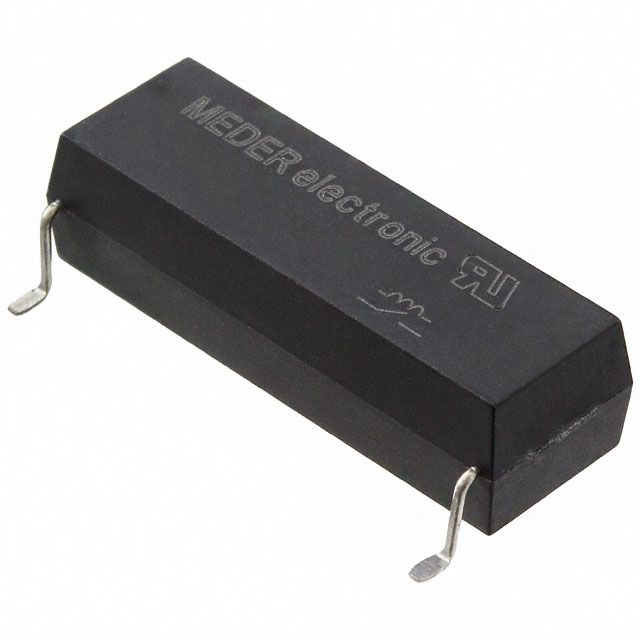

The KT24-1A-40L-SMD is a reed relay from Standex-Meder Electronics with a coil voltage of 24V and a coil current of 13.3mA. It has a coil power rating of 320mW and a coil resistance of 1.8kΩ. This relay is suitable for surface mount applications and has a maximum operating temperature of 100°C and a minimum operating temperature of -40°C. The KT24-1A-40L-SMD is RoHS compliant and available in a package quantity of 15 with a cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Standex-Meder Electronics KT24-1A-40L-SMD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Standex-Meder Electronics KT24-1A-40L-SMD technical specifications.
| Package/Case | SMD/SMT |
| Coil Current | 13.3mA |
| Coil Power | 320mW |
| Coil Resistance | 1.8kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 1A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 15 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| Relay Type | Reed |
| RoHS Compliant | Yes |
| Series | KT |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| RoHS | Compliant |
