SPST-NO reed relay featuring a 5VDC coil voltage and 200 Ohm coil resistance, drawing 25mA coil current. This through-hole mount relay offers a 1A contact current rating and a dry contact type. With an operate time of 1.1ms and release time of 0.1ms, it operates within a temperature range of -20°C to 70°C. The component is RoHS compliant and utilizes PC pin termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Standex-Meder Electronics LI05-1A85 technical specifications.
General
Coil Current
25mA
Coil Resistance
200R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operate Time
1.1ms
Package Quantity
16
Packaging
Rail/Tube
Release Time
0.1ms
RoHS Compliant
Yes
Series
LI
Termination
PC Pin
Throw Configuration
SPST
Weight
4.7g
Compliance
RoHS
Compliant
Datasheet
Standex-Meder Electronics LI05-1A85 Datasheet
Download the complete datasheet for Standex-Meder Electronics LI05-1A85 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

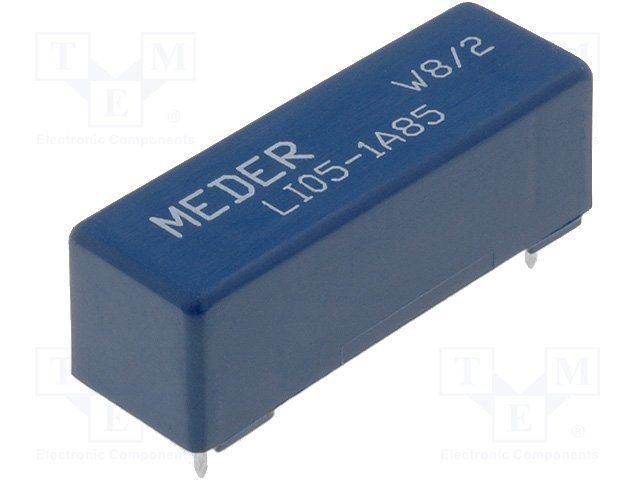

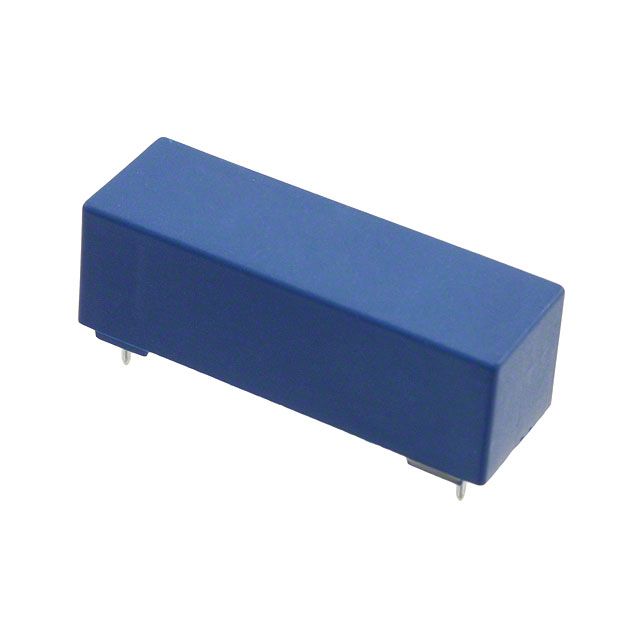

Product Images
