SPST-NO reed relay featuring a 12VDC coil with 680 Ohm resistance and 17.5mA coil current. Offers a 1A contact current rating and 1kV switching voltage. Designed for through-hole mounting with PC pin termination, this dry reed relay has an operate time of 1ms and release time of 0.1ms. Operates within a temperature range of -20°C to 70°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Standex-Meder Electronics LI12-1A85 technical specifications.
General
| Coil Current | 17.5mA |
| Coil Resistance | 680R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 1A |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 1ms |
| Packaging | Rail/Tube |
| Release Time | 0.1ms |
| RoHS Compliant | Yes |
| Series | LI |
| Switching Current | 1A |
| Switching Voltage | 1kV |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 4.7g |
Compliance
| RoHS | Compliant |
Datasheet
Standex-Meder Electronics LI12-1A85 Datasheet
Download the complete datasheet for Standex-Meder Electronics LI12-1A85 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

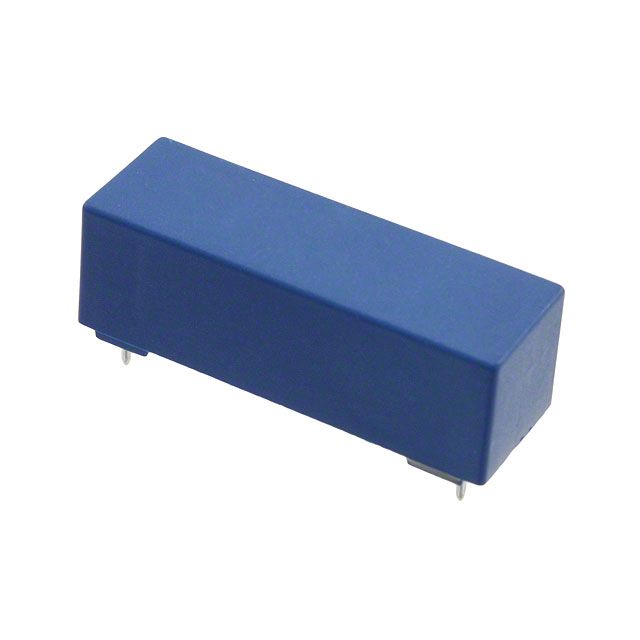

Product Images
