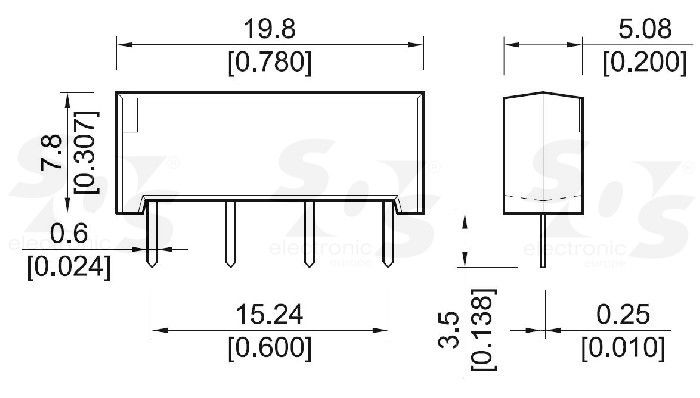

SPST-NO reed relay featuring a 5VDC coil with 10mA current and 500 Ohm resistance. Offers a 0.5A contact current rating and 1A switching current with a 200V switching voltage. Designed for through-hole mounting with PC pin termination, this dry reed relay boasts a 0.7ms operate time and 0.1ms release time, with a lifespan of 1 billion operations. Operating temperature range is -20°C to 70°C, and dimensions are 19.8mm (length/width) x 5.08mm (depth) x 7.8mm (height).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Standex-Meder Electronics SIL05-1A72-71D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 10mA |
| Coil Resistance | 500R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Depth | 5.08mm |
| Height | 7.8mm |
| Length | 19.8mm |
| Life (Hours) | 1000000000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.7ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.1ms |
| RoHS Compliant | Yes |
| Series | SIL |
| Switching Current | 1A |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 19.8mm |
| RoHS | Compliant |
