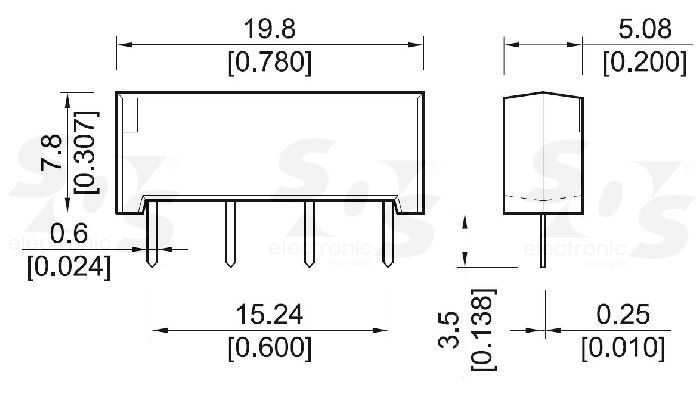

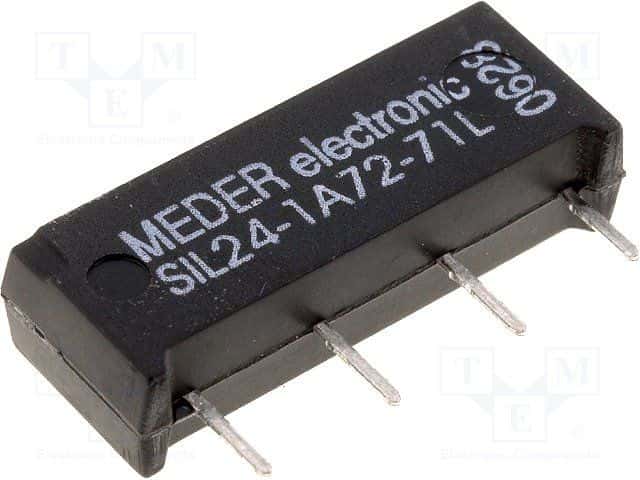

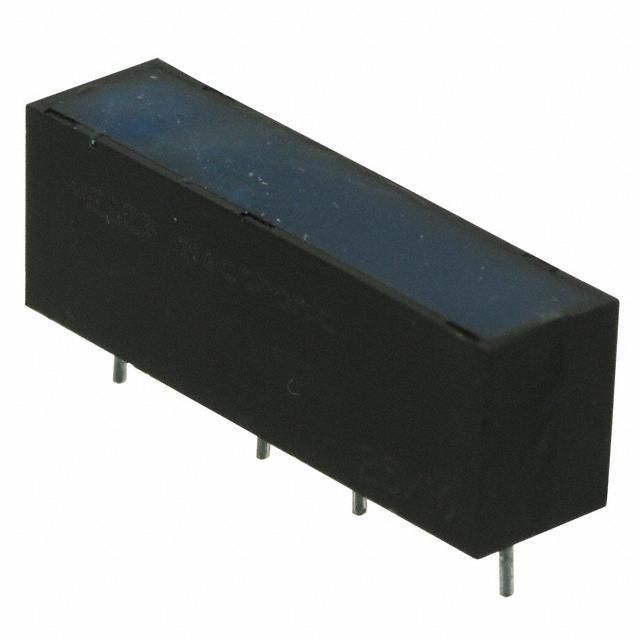

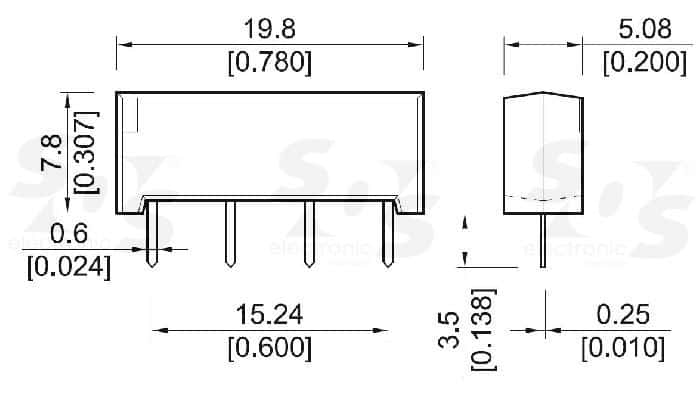

Single Pole Single Throw Normally Open (SPST-NO) reed relay with a 24VDC coil voltage and 2kΩ coil resistance. Features a 1A switching current, 20W switching capacity, and 200V switching voltage. Designed for through-hole PCB mounting with a SIP package, measuring 19.8x5.08x7.8mm. Operates within a temperature range of -20°C to 70°C, with a 0.7ms operate time and 0.1ms release time. UL approved and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Standex-Meder Electronics SIL24-1A72-71L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Standex-Meder Electronics SIL24-1A72-71L technical specifications.
| Approvals | UL |
| Package/Case | SIP |
| Coil Current | 12mA |
| Coil Resistance | 2kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 500mA |
| Height | 7.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 0.7ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Ratings | IP54 |
| Reach SVHC Compliant | No |
| Release Time | 0.1ms |
| RoHS Compliant | Yes |
| Series | SIL |
| Switching Capacity | 20W |
| Switching Current | 1A |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Test Voltage | 4.2kV |
| Throw Configuration | SPST |
| Weight | 1.5g |
| Width | 19.8mm |
| RoHS | Compliant |
