CDRH2D18/HPNP-2R2NC

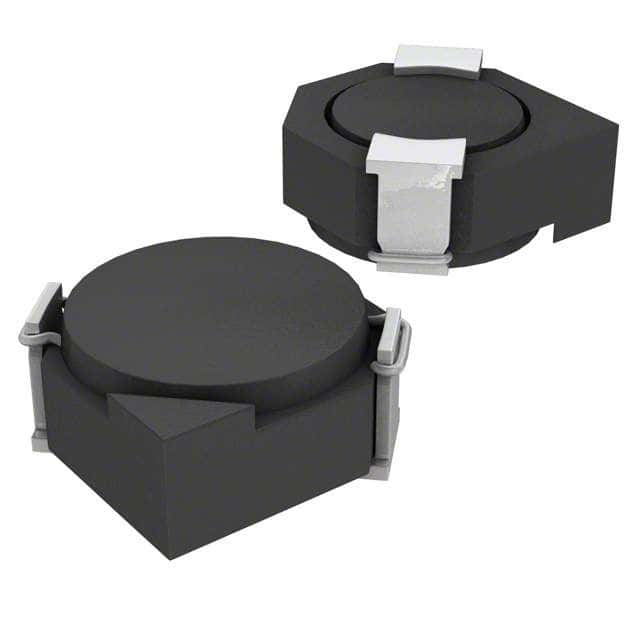

2.2uH Shielded SMD Inductor, 1.6A, 60mR DCR, Ferrite, 1212

Surface mount fixed inductor featuring a shielded drum core construction with a 2.2µH inductance and 30% tolerance, tested at 100kHz. This component offers a DC current rating of 1.9A, a maximum DC current of 1.6A, and a low DC resistance of 60mΩ. Operating within a temperature range of -40°C to 105°C, it is housed in a 1212 case code and supplied on tape and reel.

Package1212

Current Rating1.9A

MountingSurface Mount

Inductance2.2uH

Quick Jump:

Technical Specifications

Sumida CDRH2D18/HPNP-2R2NC technical specifications.

General

Case Code (Imperial)	1212
Package/Case	1212
Core Material	Ferrite
Current Rating	1.9A
DC Current	1.9A
DC Resistance (DCR)	60mR
Depth	3.2mm
Height	2mm
Height - Seated (Max)	0.079inch
Inductance	2.2uH
Lead Free	Lead Free
Length	3.2mm
Max DC Current	1.6A
Max Operating Temperature	105°C
Military Standard	Not
Min Operating Temperature	-40°C
Mount	Surface Mount
Package Quantity	1000
Packaging	Tape and Reel
Radiation Hardening	No
Rated Current-Max	1.6A
RoHS Compliant	Yes
Saturation Current	1.6A
Series	CDRH2D18/HP
Shielding	Shielded
Termination	SMD/SMT
Test Frequency	100kHz
Tolerance	30%
Width	0.118inch
