Surface mount shielded drum core inductor with 4.7µH inductance and 30% tolerance, designed for 100kHz operation. Features a 1.2A rated current, 140mΩ DC resistance, and ferrite core material. Operates across a -40°C to 105°C temperature range. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating1.2A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Sumida CDRH2D18/HPNP-4R7NC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.2A |
| DC Resistance (DCR) | 140mR |
| Depth | 3.2mm |
| Height | 2mm |
| Height - Seated (Max) | 0.079inch |
| Inductance | 4.7uH |
| Lead Free | Lead Free |
| Length | 0.118inch |
| Max DC Current | 1.2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1.2A |
| RoHS Compliant | Yes |
| Saturation Current | 1.2A |
| Series | CDRH2D18/HP |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Sumida CDRH2D18/HPNP-4R7NC Datasheet
Download the complete datasheet for Sumida CDRH2D18/HPNP-4R7NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

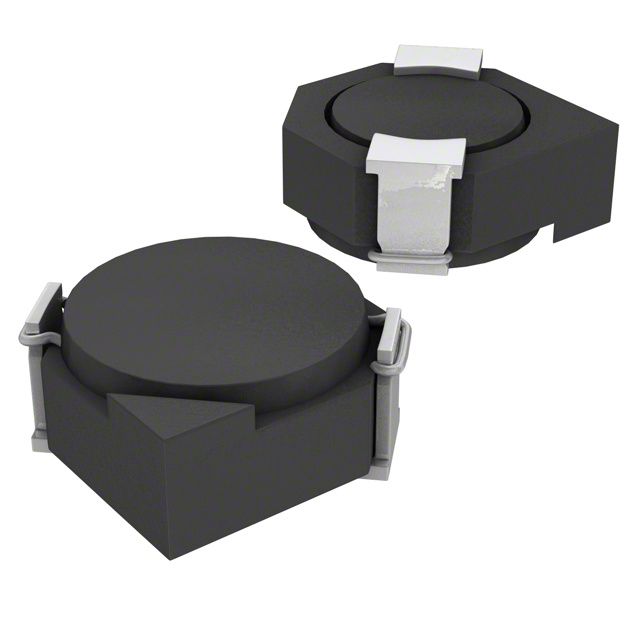

Product Images
