Technical Specifications
Sumida CDRH2D18/LDNP-470NC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 660mR |
| Depth | 3.2mm |
| Height | 2mm |
| Inductance | 47uH |
| Length | 3.2mm |
| Max DC Current | 480mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 200mA |
| Series | CDRH2D18/LD |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Sumida CDRH2D18/LDNP-470NC Datasheet
Download the complete datasheet for Sumida CDRH2D18/LDNP-470NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

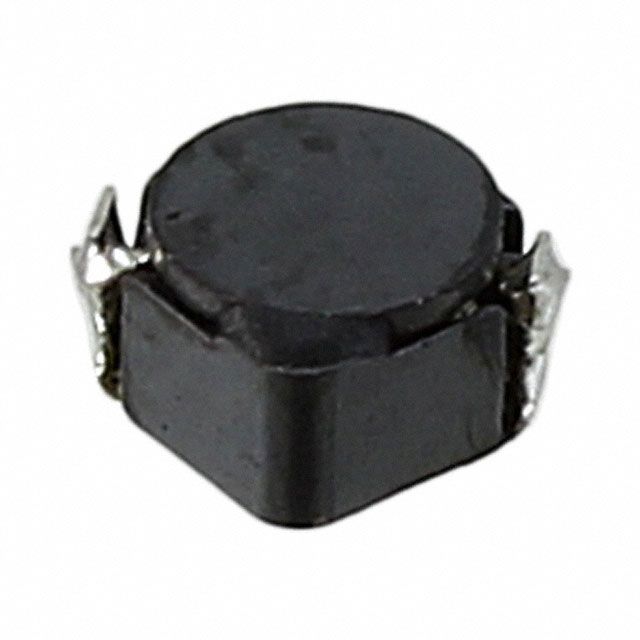

Product Images
