Surface mount shielded drum core inductor with 10µH inductance and 30% tolerance. Features a ferrite core, 1.18A maximum DC current rating, and 1.05A saturation current. DC resistance is 145mΩ at a test frequency of 100kHz. Operating temperature range is -40°C to 105°C. Packaged in tape and reel for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Sumida CDRH3D28NP-100NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
145mR
Depth
4mm
Height
3mm
Inductance
10uH
Lead Free
Lead Free
Length
4mm
Max DC Current
1.18A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.05A
RoHS Compliant
Yes
Saturation Current
1.05A
Series
CDRH3D28
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH3D28NP-100NC Datasheet
Download the complete datasheet for Sumida CDRH3D28NP-100NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

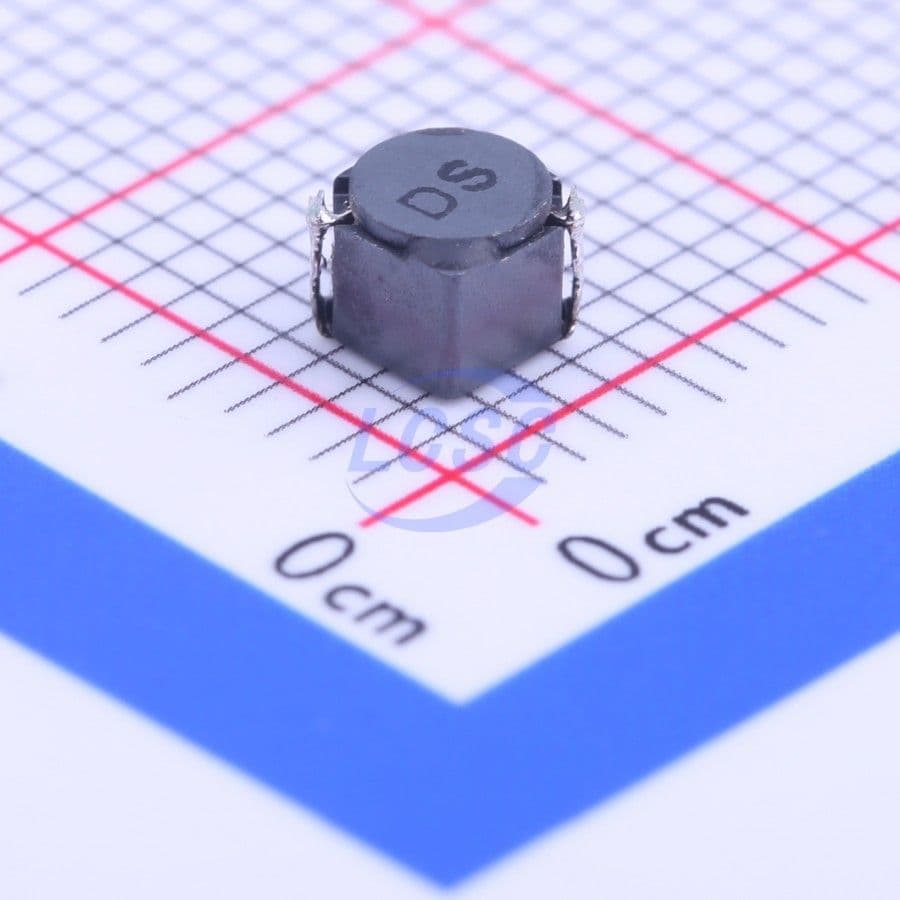

Product Images
