Surface mount shielded drum core inductor with 2.2µH inductance and 25% tolerance, tested at 100kHz. Features a 2.4A rated current, 3.2A saturation current, and 44.3mΩ DC resistance. Operates within a -40°C to 100°C temperature range. Ferrite core material and lead-free construction ensure reliable performance.
PackageNonstandard
Current Rating2.4A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Sumida CDRH4D22HPNP-2R2NC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.4A |
| DC Resistance (DCR) | 44.3mR |
| Depth | 5mm |
| Height | 2.4mm |
| Height - Seated (Max) | 0.094inch |
| Inductance | 2.2uH |
| Lead Free | Lead Free |
| Length | 0.185inch |
| Max DC Current | 2.4A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 2.4A |
| RoHS Compliant | Yes |
| Saturation Current | 3.2A |
| Series | CDRH4D22/HP |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 25% |
| Width | 0.185inch |
Compliance
| RoHS | Compliant |
Datasheet
Sumida CDRH4D22HPNP-2R2NC Datasheet
Download the complete datasheet for Sumida CDRH4D22HPNP-2R2NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

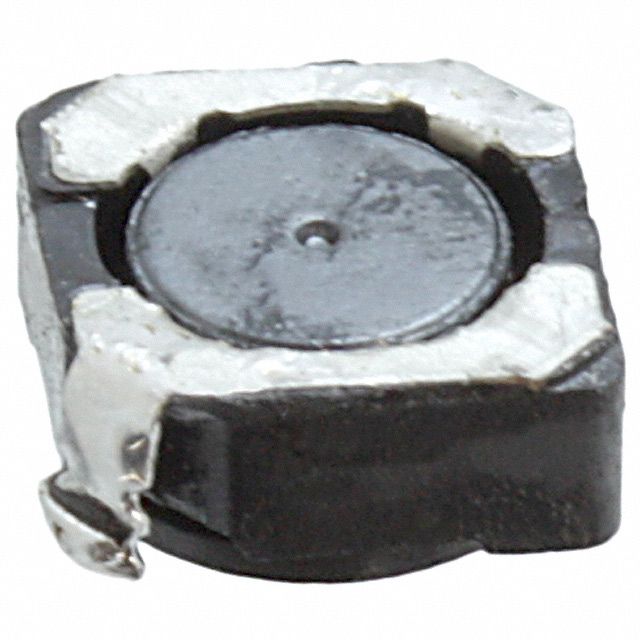

Product Images
