Surface mount shielded power inductor featuring a ferrite core and 6.8µH inductance with a 30% tolerance. Rated for 1.12A maximum DC current, this component offers a low DC resistance of 108.9mΩ at a test frequency of 100kHz. Operating within a temperature range of -40°C to 100°C, it is provided in tape and reel packaging.
PackageNonstandard
Current Rating1.12A
MountingSurface Mount
Inductance6.8uH
Quick Jump:
Technical Specifications
Sumida CDRH4D28NP-6R8NC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.12A |
| DC Resistance (DCR) | 108.9mR |
| Depth | 5mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 6.8uH |
| Lead Free | Lead Free |
| Length | 0.185inch |
| Max DC Current | 1.12A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1.12A |
| RoHS Compliant | Yes |
| Series | CDRH |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 0.185inch |
Compliance
| RoHS | Compliant |
Datasheet
Sumida CDRH4D28NP-6R8NC Datasheet
Download the complete datasheet for Sumida CDRH4D28NP-6R8NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

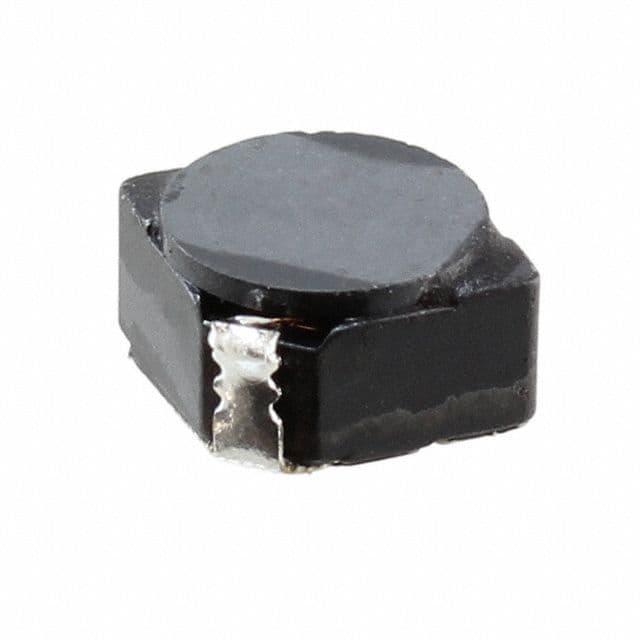

Product Images
