Surface mount shielded drum core inductor with 4.7uH inductance and 25% tolerance, tested at 100kHz. Features a ferrite core, 2.1A rated DC current, and 2.15A saturation current. Operates from -40°C to 105°C with a low 64.1mR DC resistance. Packaged on tape and reel, this lead-free and RoHS compliant component offers a compact 5.8mm x 5.8mm x 1.8mm footprint.
PackageNonstandard
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Sumida CDRH5D16NP-4R7NC technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 64.1mR |
| Depth | 5.8mm |
| Height | 1.8mm |
| Inductance | 4.7uH |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Max DC Current | 2.1A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 2.1A |
| RoHS Compliant | Yes |
| Saturation Current | 2.15A |
| Series | CDRH5D16 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 25% |
| Weight | 0.006632oz |
| Width | 5.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Sumida CDRH5D16NP-4R7NC Datasheet
Download the complete datasheet for Sumida CDRH5D16NP-4R7NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

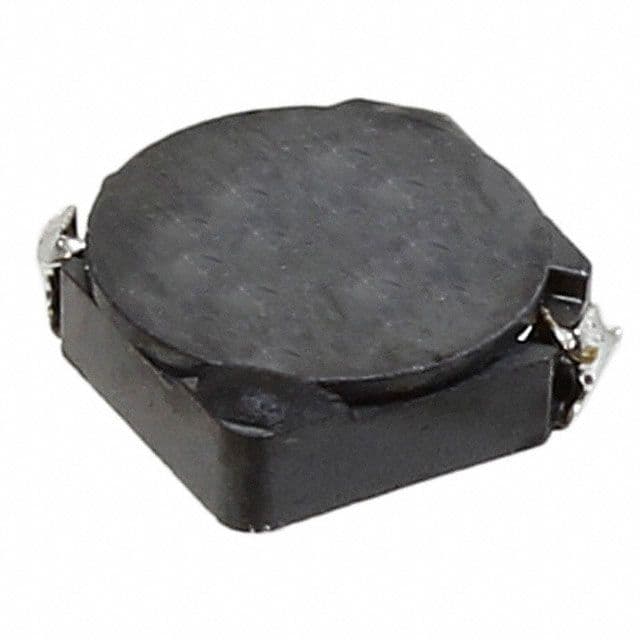

Product Images
