Surface mount shielded drum core inductor with 100µH inductance and 30% tolerance, designed for 100kHz operation. Features a ferrite core, 540mA rated current, and 0.535 Ohm DC resistance. Operates within a -40°C to 100°C temperature range and is RoHS compliant. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating540mA
MountingSurface Mount
Inductance100uH
Quick Jump:
Technical Specifications
Sumida CDRH6D28NP-101NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
540mA
DC Current
540mA
DC Resistance (DCR)
535mR
Depth
7mm
Height
3mm
Height - Seated (Max)
0.118inch
Inductance
100uH
Lead Free
Lead Free
Length
7mm
Max DC Current
540mA
Max Operating Temperature
100°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Rated Current-Max
540mA
RoHS Compliant
Yes
Series
CDRH6D28
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Weight
0.01411oz
Width
0.264inch
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH6D28NP-101NC Datasheet
Download the complete datasheet for Sumida CDRH6D28NP-101NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

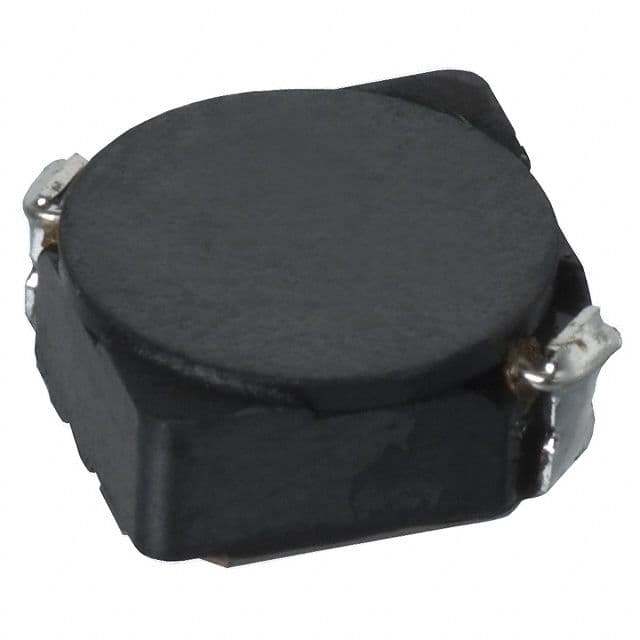

Product Images
